SOYO X99 Motherboard Set With LGA2011-3 Xeon E5 2630 V4 CPU DDR4 16GB

Differences Between Packages

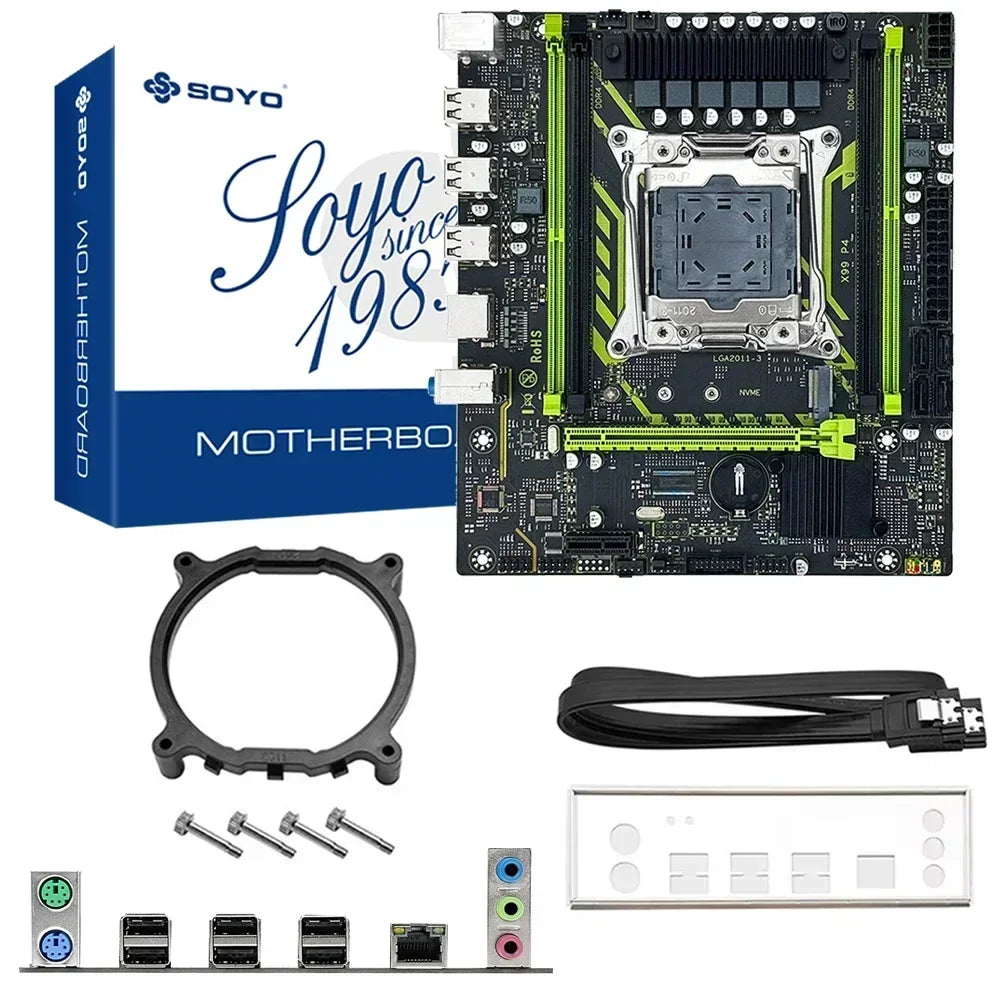

Motherboards: 1*SY-X99 D4 motherboard
Motherboard+CPU: SY-X99 D4+E5 2630 V4 CPU

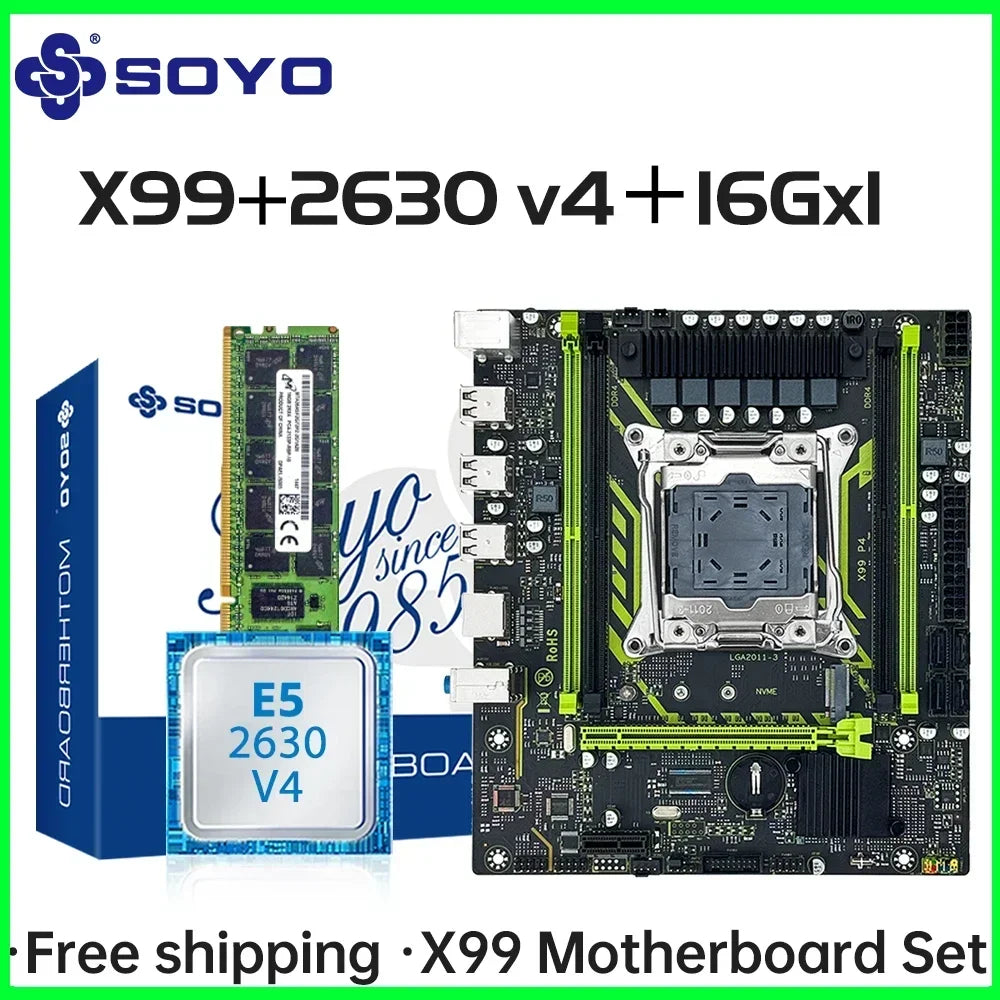

Motherboard+CPU+RAM: SY-X99 D4+E5 2630 V4 CPU*DDR4 16G*1

Please confirm the differences between the packages before purchasing. If you mind, please do not place an order

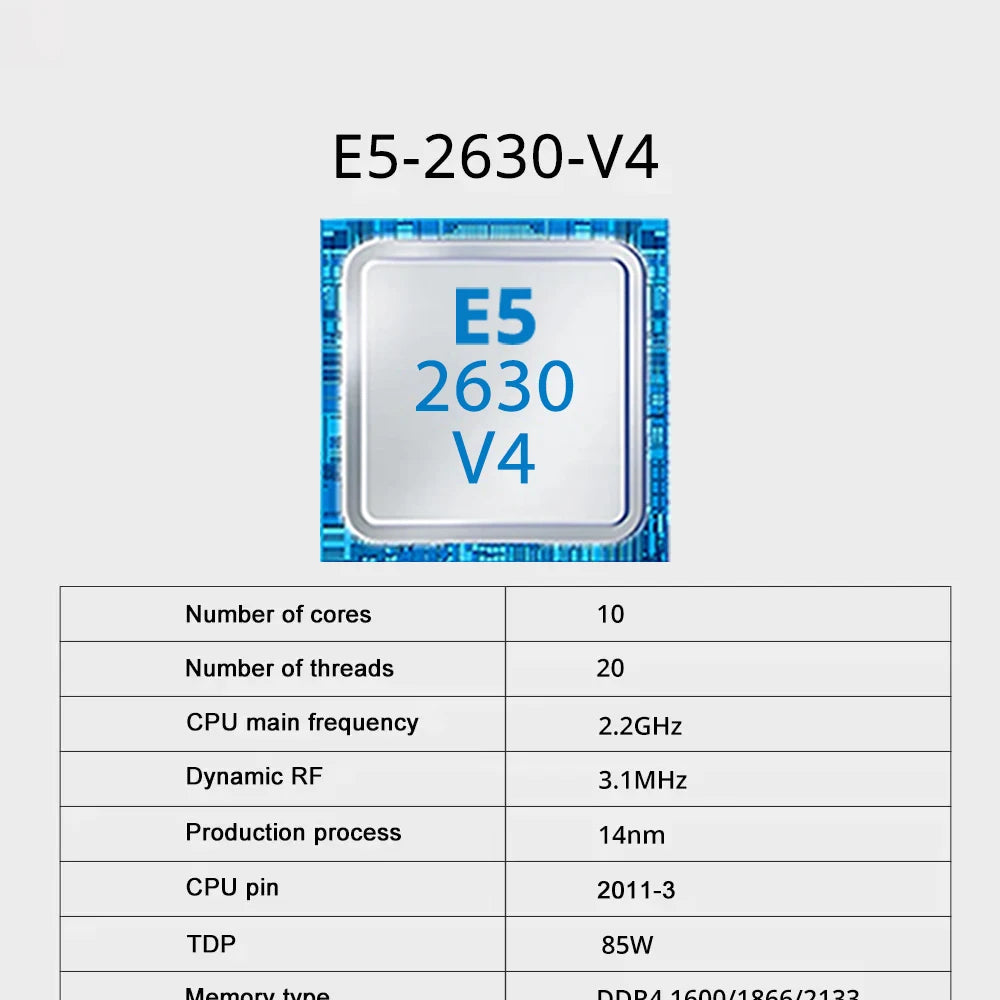

CPU：
Model number: E5 2630 V4
Processor Speed: 2.2GHz
Maximum core frequency: 3.1GHz
Processor Socket: LGA2011-3
Process: 14nm
Memory type: DDR4 1600/1866/2133
The number of CPU cores: 10
The number of threads: 20
L3 cache size (MB): 25 MB
Wattage: 85 Watts
cpu will be final double tested before shipping
The CPU is used , please don't buy it if you mind

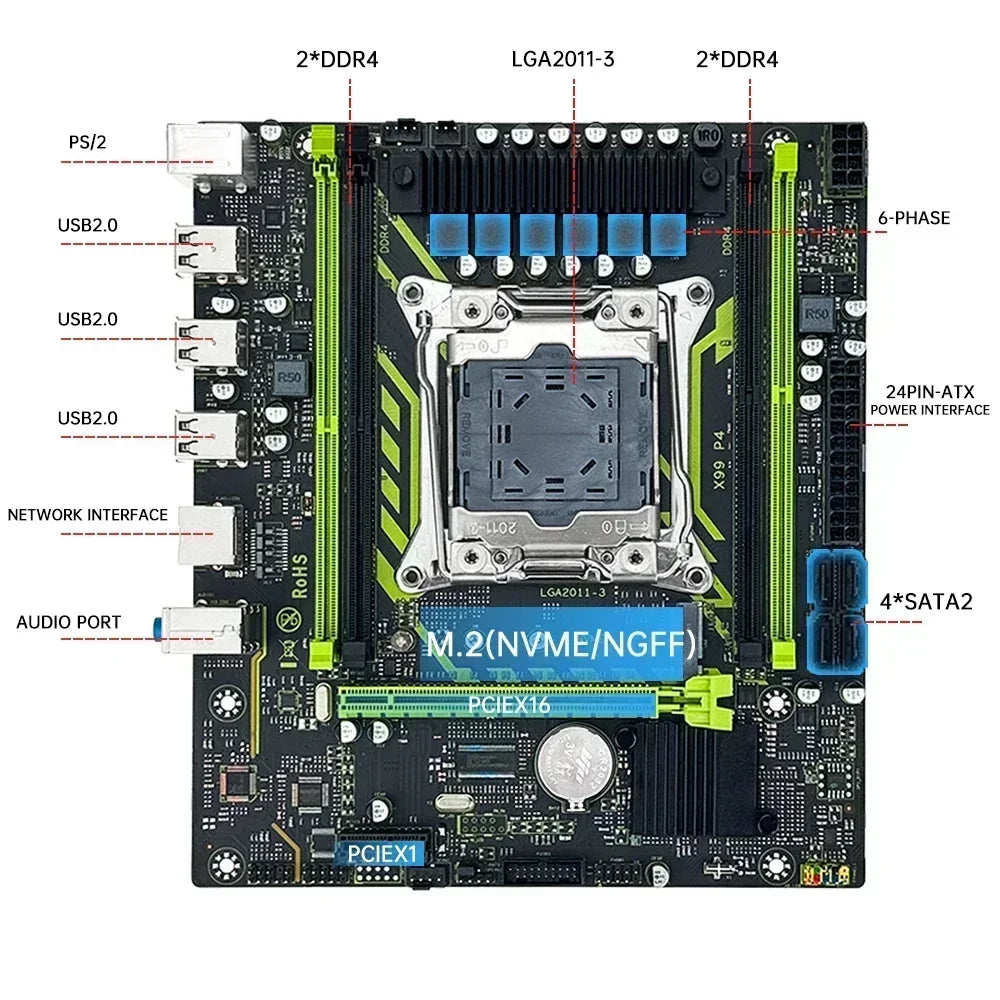

Specification:

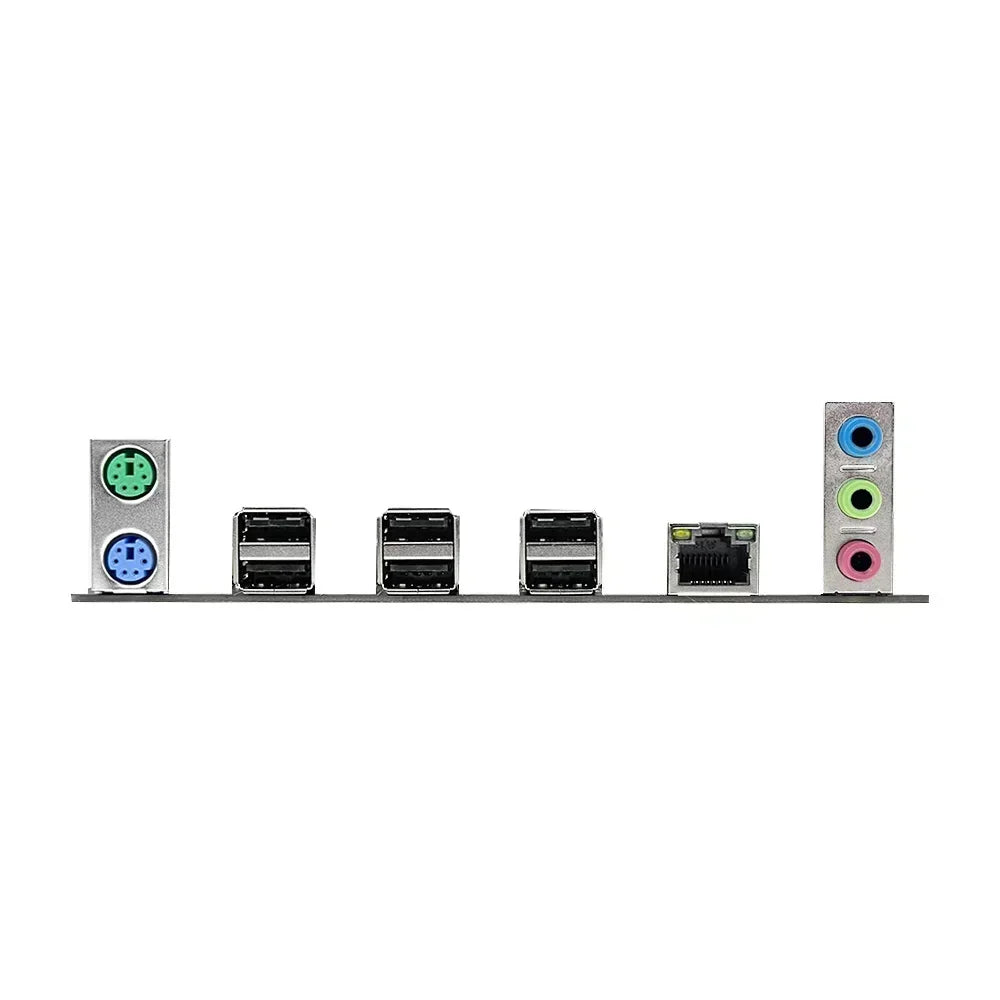

Ethernet: 1 Realtek Gigabit Ethernet card
Audio: 1 audio interface (MIC-IN, LINE OUT, LINE IN)
USB Port: 6 USB ports 2.0 interface;
PCIE: 2 (1 PCIE X16, 1 PCIE X1)
USB ports: 4 (one USB port can be connected to two USB 2.0 ports)

Internal connectors
SATA interface: 4 SATA interfaces ( SATA2.0)
ATXPWR interface: 1 standard 1X8PIN power socket: 1 standard 1X24PIN power socket
Audio: 1 2x5PIN pin
Jlpc: 1 2x5pin battery
M. 2 interfaces: 1 M.2 interface (supporting PCIE M. 2/SATAM. 2)

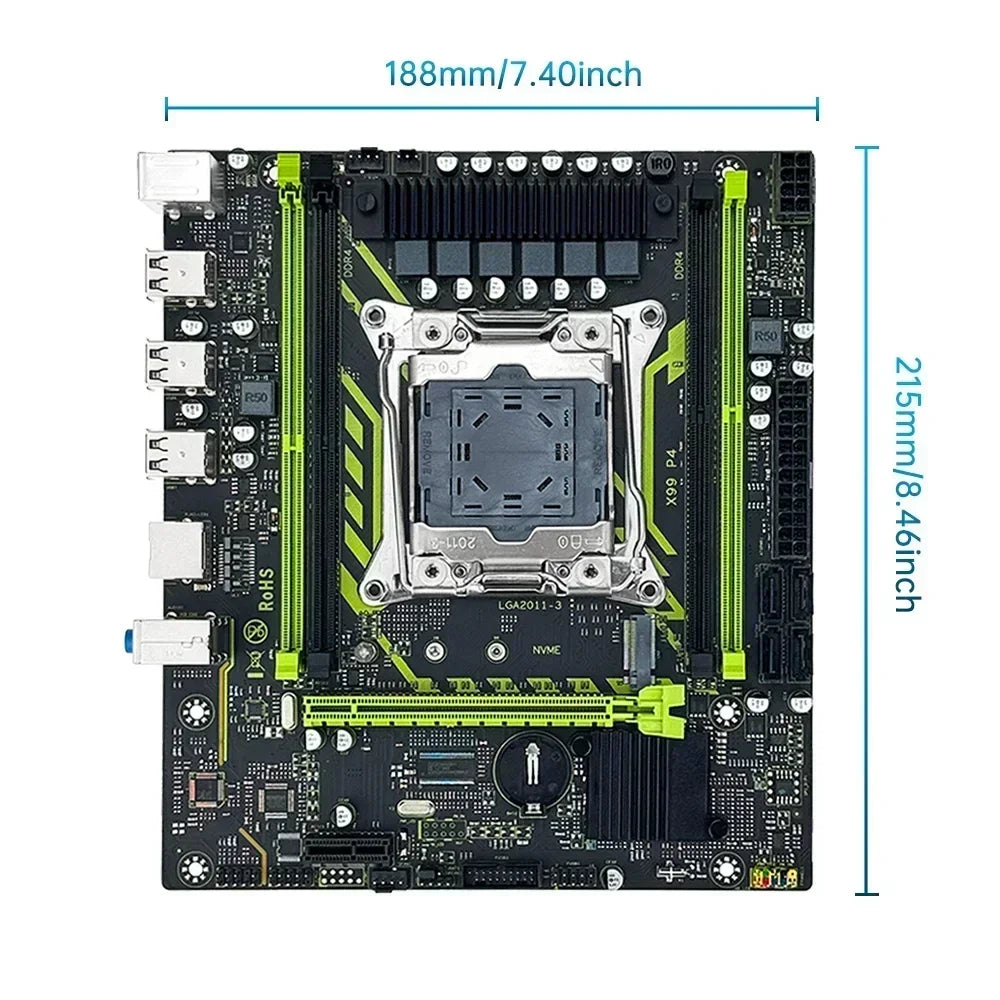

:M-ATX【215 x 190】mm

Note:
(1) This planform needs powerful power supply. Please make sure your power supply can enough to supports this planform.(at least 500w brand power supply).

(2) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.
