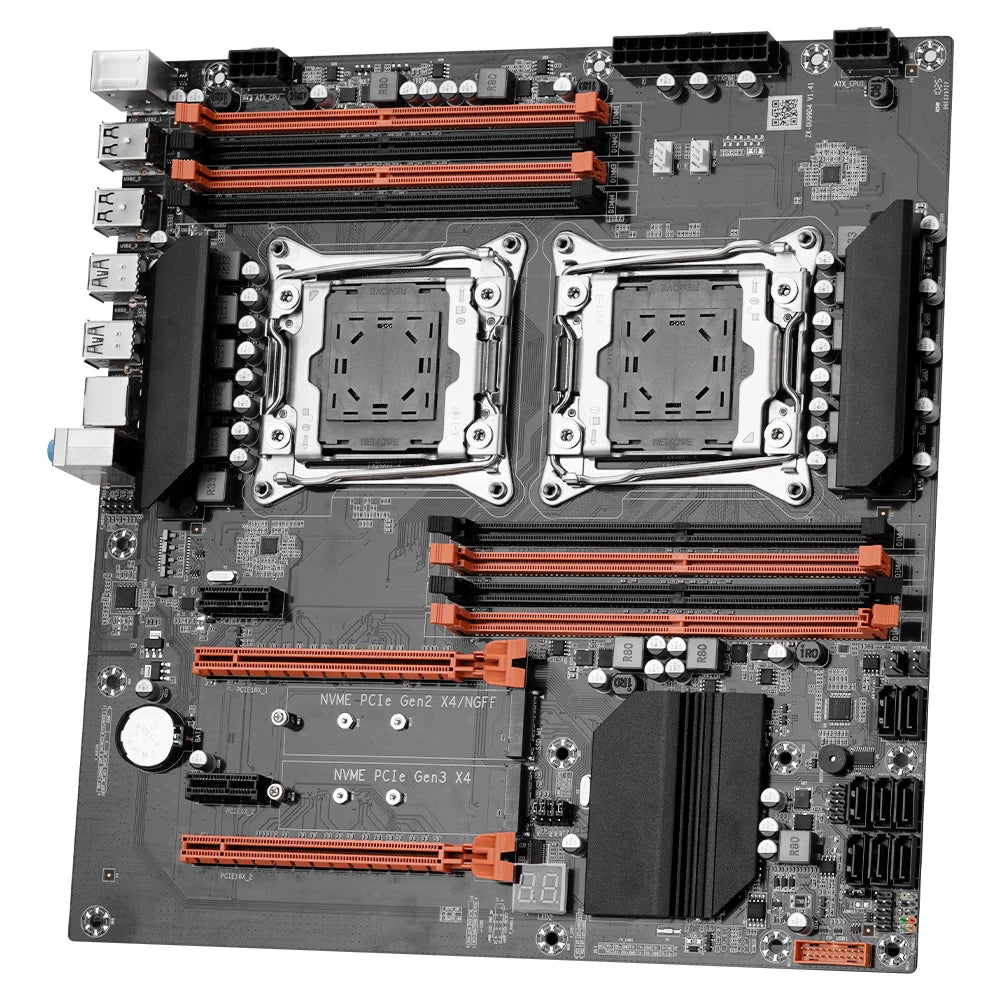

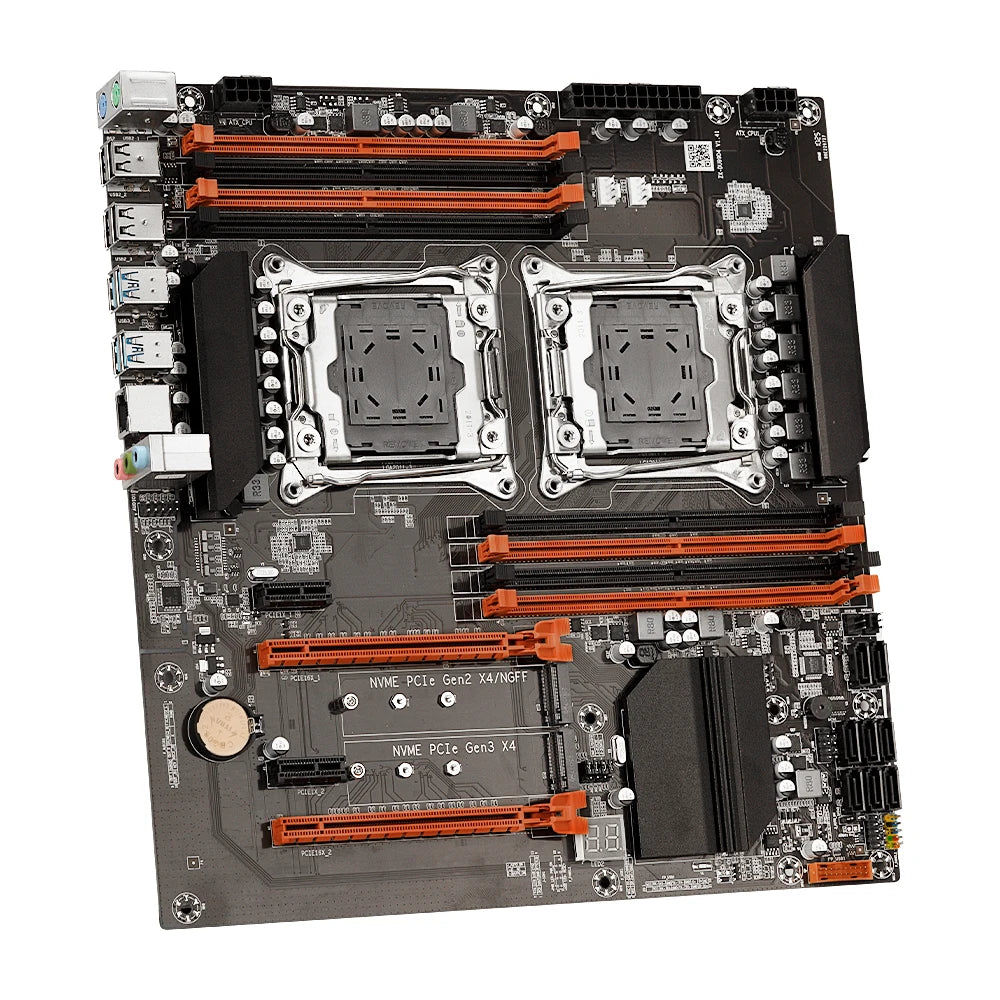

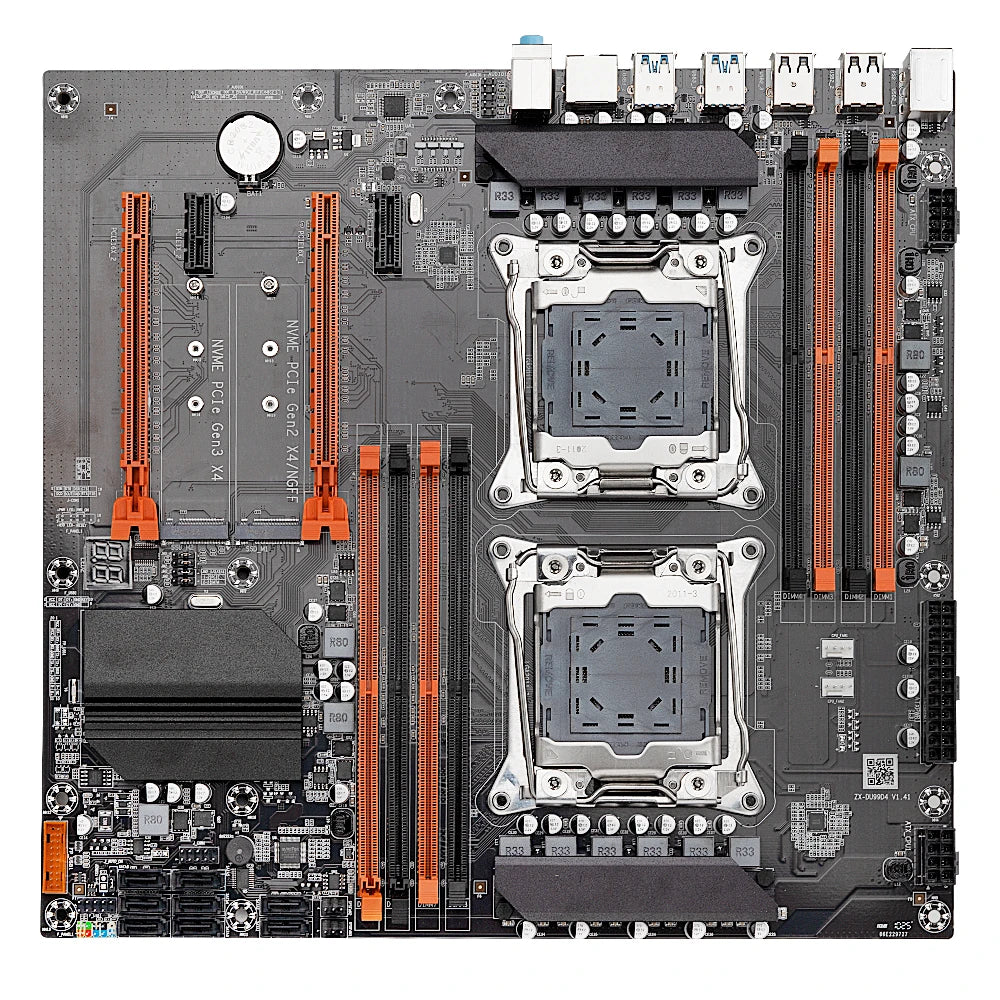

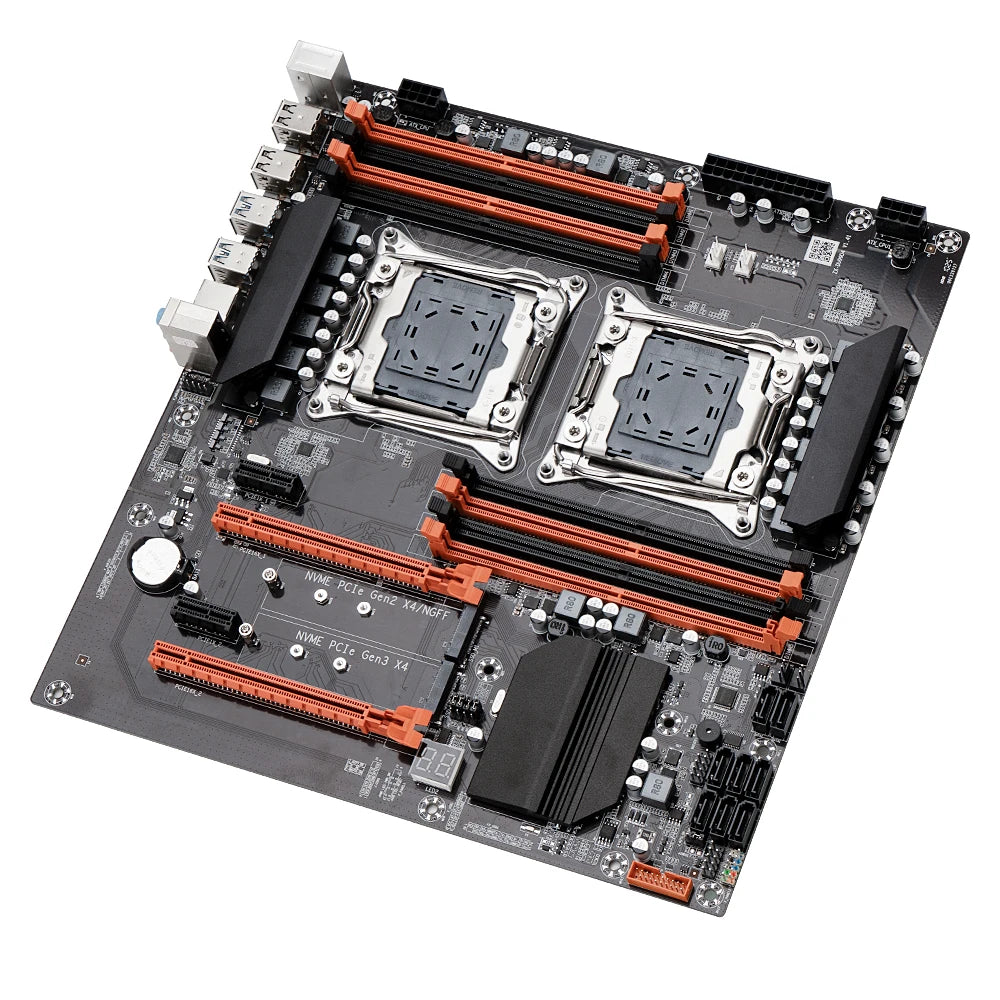

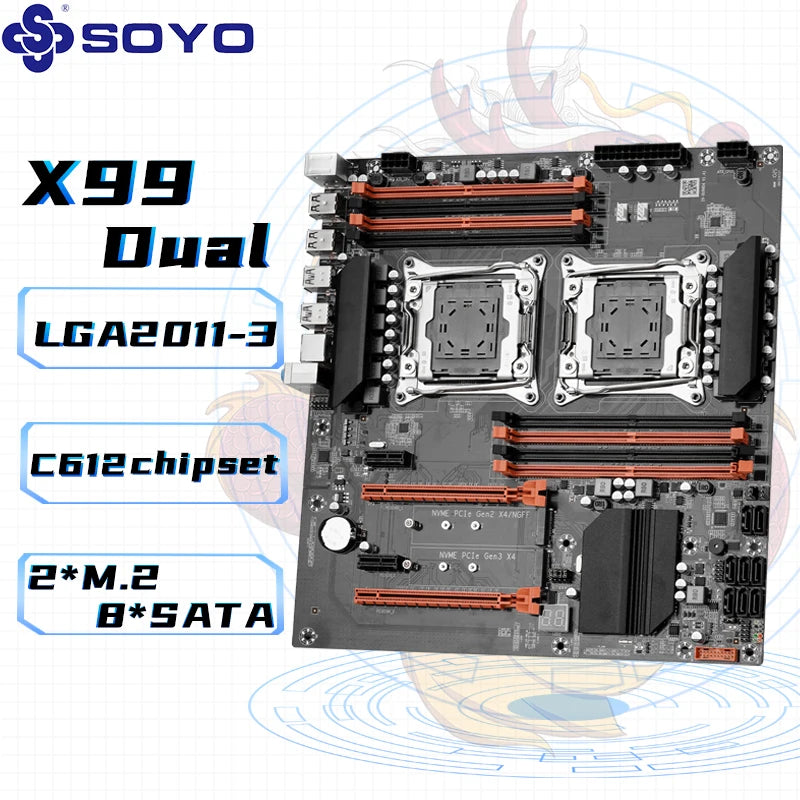

SOYO X99 Dual CPU Gaming Motherboard DDR4 M.2 NVME USB3.0 E-ATX
SOYO X99 Dual CPU Gaming Motherboard DDR4 M.2 NVME USB3.0 E-ATX
Regular price
$108.81 CAD
Regular price
Sale price
$108.81 CAD
Quantity
Couldn't load pickup availability
**Product Specifications**
**CPU Support**
- Dual Intel LGA 2011 Socket Processors
- Compatible with Intel Xeon E5 Series (V3/V4)
**Chipset**
- Intel C612 Express Chipset
**Memory**
- 8x DDR4 Slots (Supports 2133/2400 MHz)
- Single DIMM Capacity: Up to 32GB
- Total Maximum Capacity: 256GB
- ECC/Non-ECC Server & Standard Memory Support
**Storage**
- 1x M.2 NVME/NGFF Combo Slot (Manual Switch)
- 1x Dedicated M.2 NVME Slot
- 8x SATA 3.0 (6 Gb/s) Ports
**Expansion Slots**
- 2x PCIe x16 Slots
- 2x PCIe x1 Slots
**I/O Ports**
- **Rear Panel:**
- 1x PS/2 Port
- 6x USB 3.0 Ports
- 6x USB 2.0 Ports
- 1x RJ45 Gigabit LAN Port
- **Front Panel Headers:**
- 1x F_USB (Supports 2x USB 2.0)
- 1x FP_USB1 (Supports 2x USB 3.0)
- 1x Front Audio Header
- 1x COM1 Header
**Cooling & Power**
- 2x CPU_FAN Headers
- 2x SYS_FAN Headers
- 1x 24-Pin ATX Power Connector
- 2x 8-Pin ATX_CPU Power Connectors
**Audio**
- Realtek ALC Series High-Fidelity Audio Codec
- Dedicated Audio Capacitors for Enhanced Sound Quality
**Networking**
- **Default:** 1x Realtek 8111H Gigabit LAN (with Split Filter)
- **Optional Configurations:**
- 1x Gigabit LAN + Integrated Filter
- 1x Realtek 8106E 100 Mbps LAN
**Form Factor**
- Extended ATX Size: 281.2mm x 295mm
**Operating Environment**
- Temperature: -20°C to 60°C
- Humidity: 0-95% (Non-Condensing)
**Key Features**
- **Dual CPU Support** for High-Performance Computing
- **Massive Memory Capacity** Up to 256GB DDR4
- **Flexible Storage Options** with Dual M.2 Slots and 8x SATA Ports
- **Robust Expansion** via PCIe x16/x1 Slots
- **Enterprise-Grade Networking** with Gigabit/100 Mbps Options
- **Industrial Durability** for Harsh Environments
