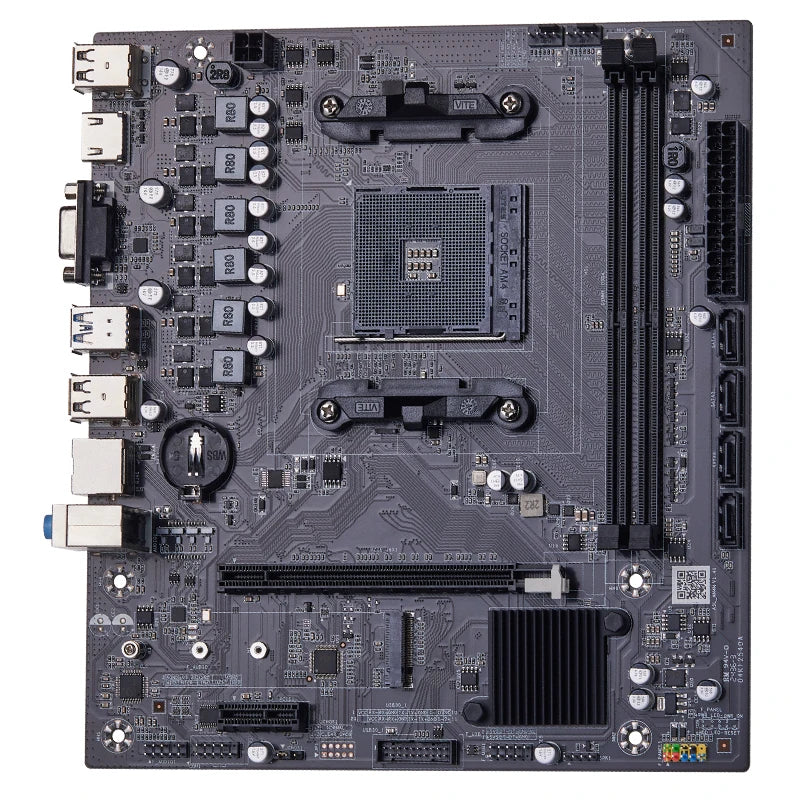

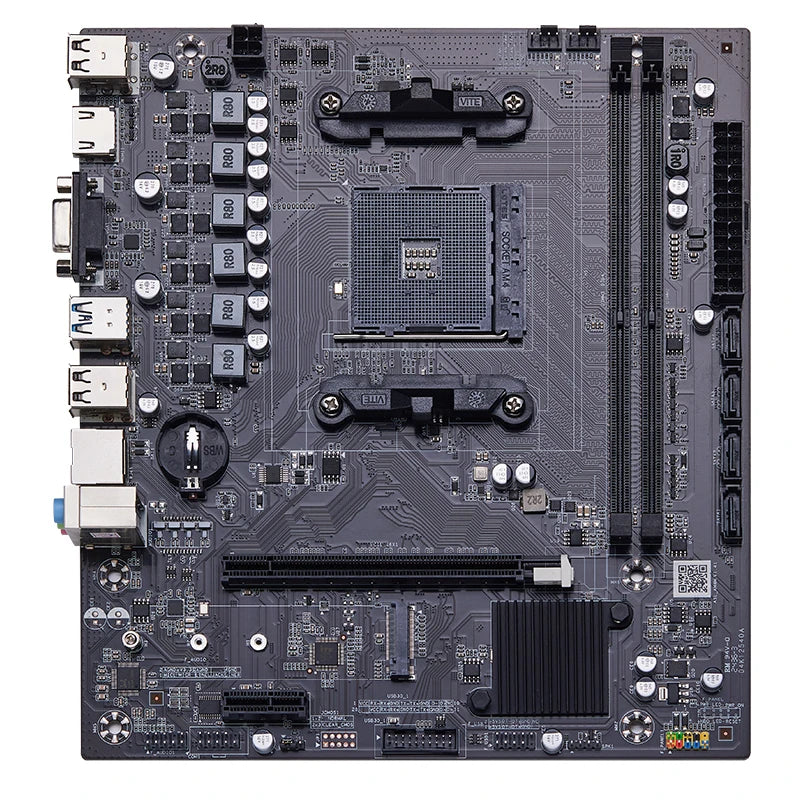

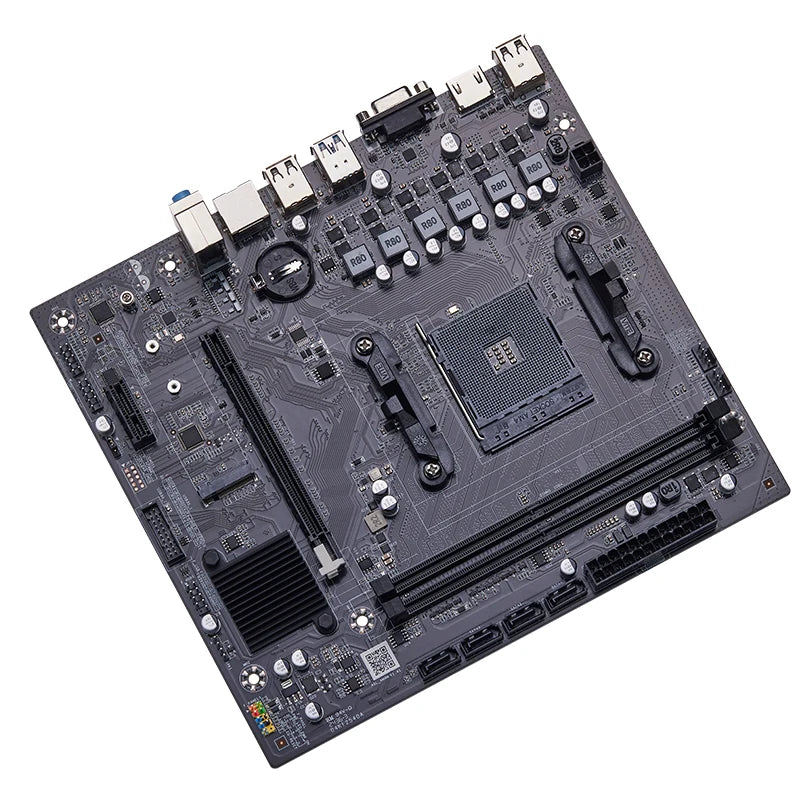

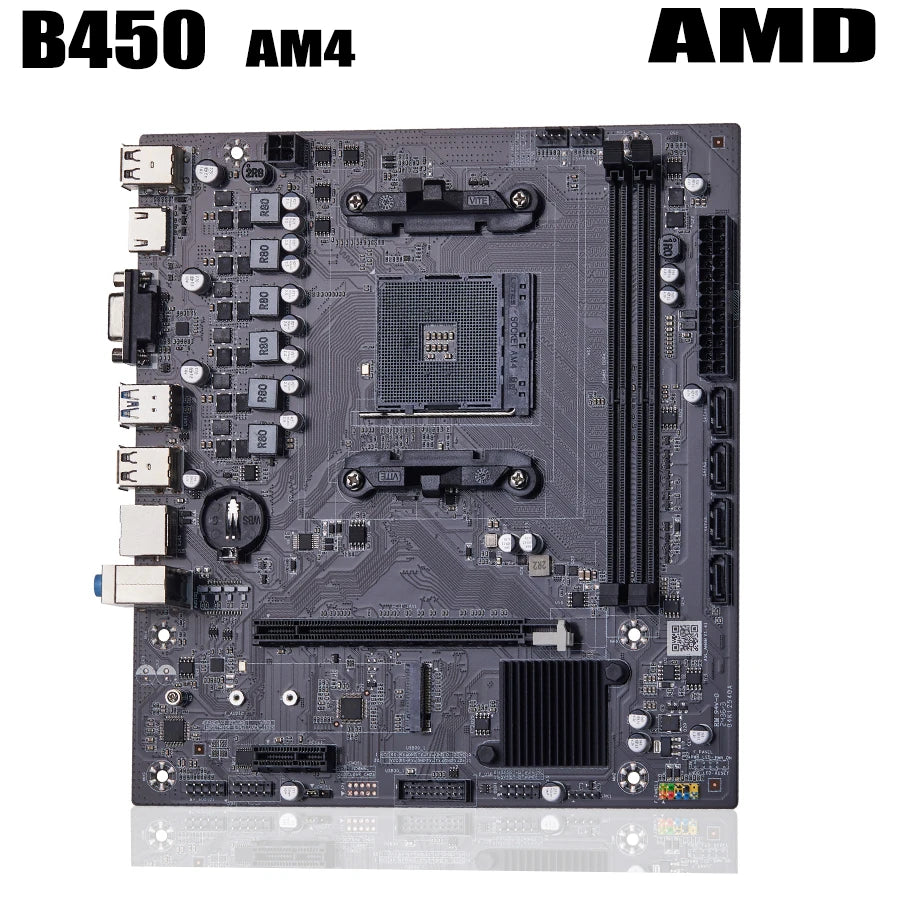

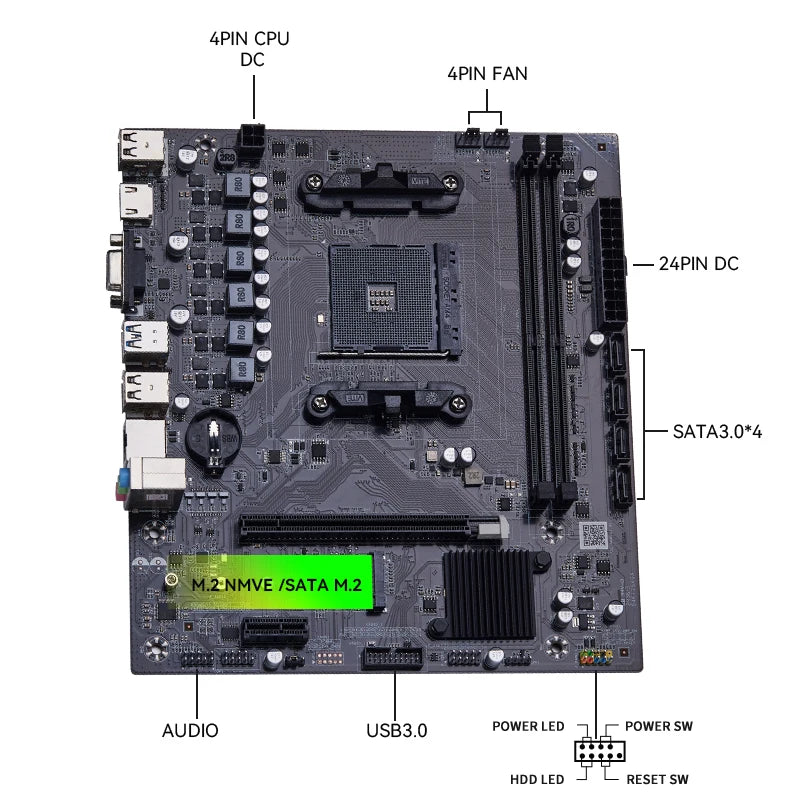

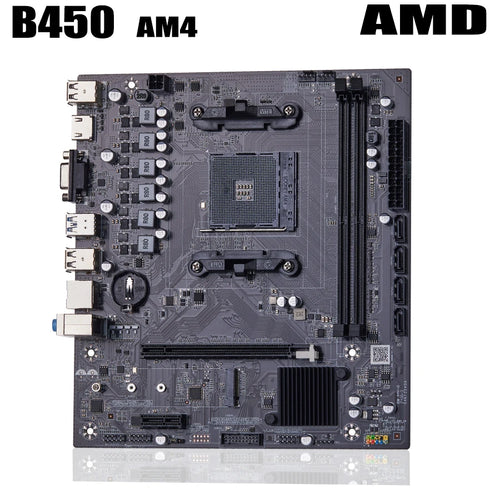

QIYIDA B450 Motherboard support DDR4 desktop RAM AM4 CPU slot NVME

Installation precautions: Please use desktop memory for memory, and do not use Intel dedicated memory as it may cause the computer to not start properly.

Note :System installation

Enter BIOS: After pressing the computer power button, keep pressing the DEL key (do not press the DEL key on the mini keyboard).
Startup shortcut key: After pressing the computer power button, continuously press F11
Supports automatic startup upon disconnection, timed startup, no disk, network wake-up.

Supported hard drives: SATA2.5 inch solid-state drives, SATA3.5
Inch mechanical hard drive, NGFFM. 2 solid-state drive, NVMEM. 2 solid state drive State hard drive (PCIe 3.0x4,)

Chipset models: X470, B450, etcCPU supported: Ryzen 1/2/3/4/5 Series Processor ,AM4 pin, Ryzen 1-5 generation CPUs, Ryzen 1000 series, Ryzen 2000 series, Ryzen 3000 series, Ryzen 4000 series, and Ryzen 5000 series.
Supported memory: Desktop DDR4, with a maximum capacity of 64GB,
Dual channel, supports up to 3600MHz frequency (different generations of CPUs support different maximum memory frequencies).

Size: 22cm×20cm

Network card model: Gigabit

Note :

1:The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.

2:We show photos of motherboard, pictures are for reference only, subject to our available products.
