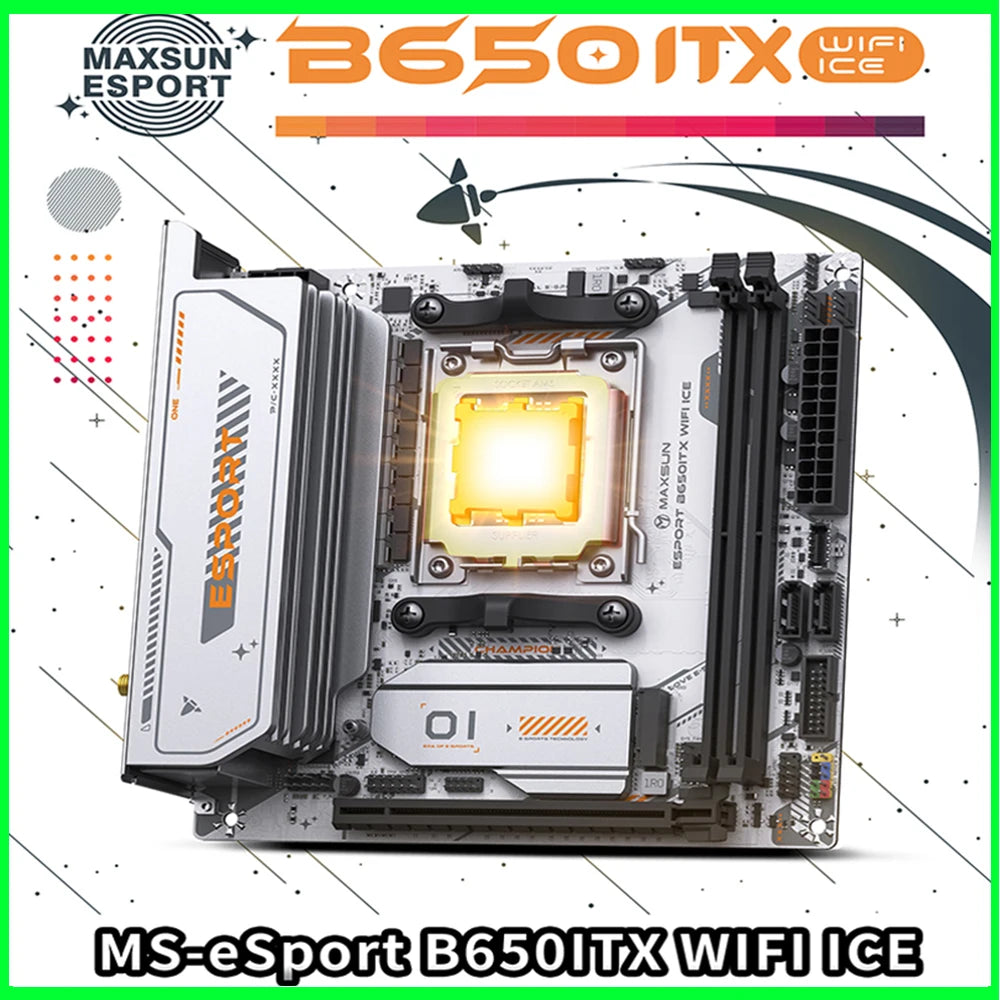

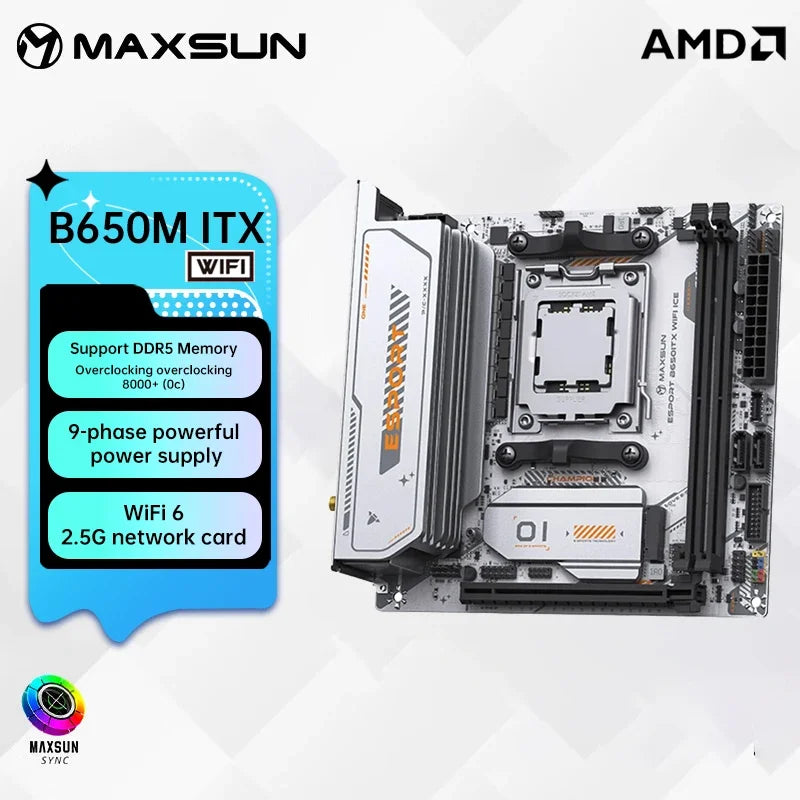

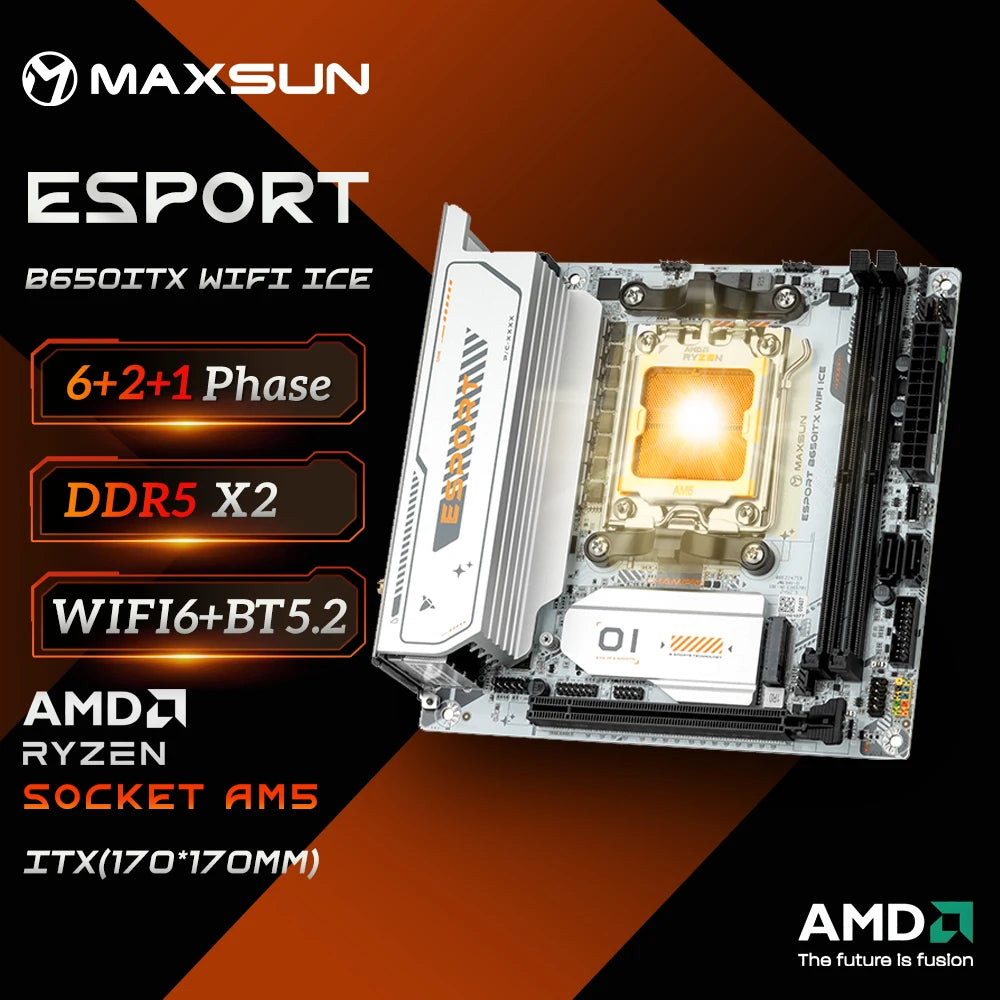

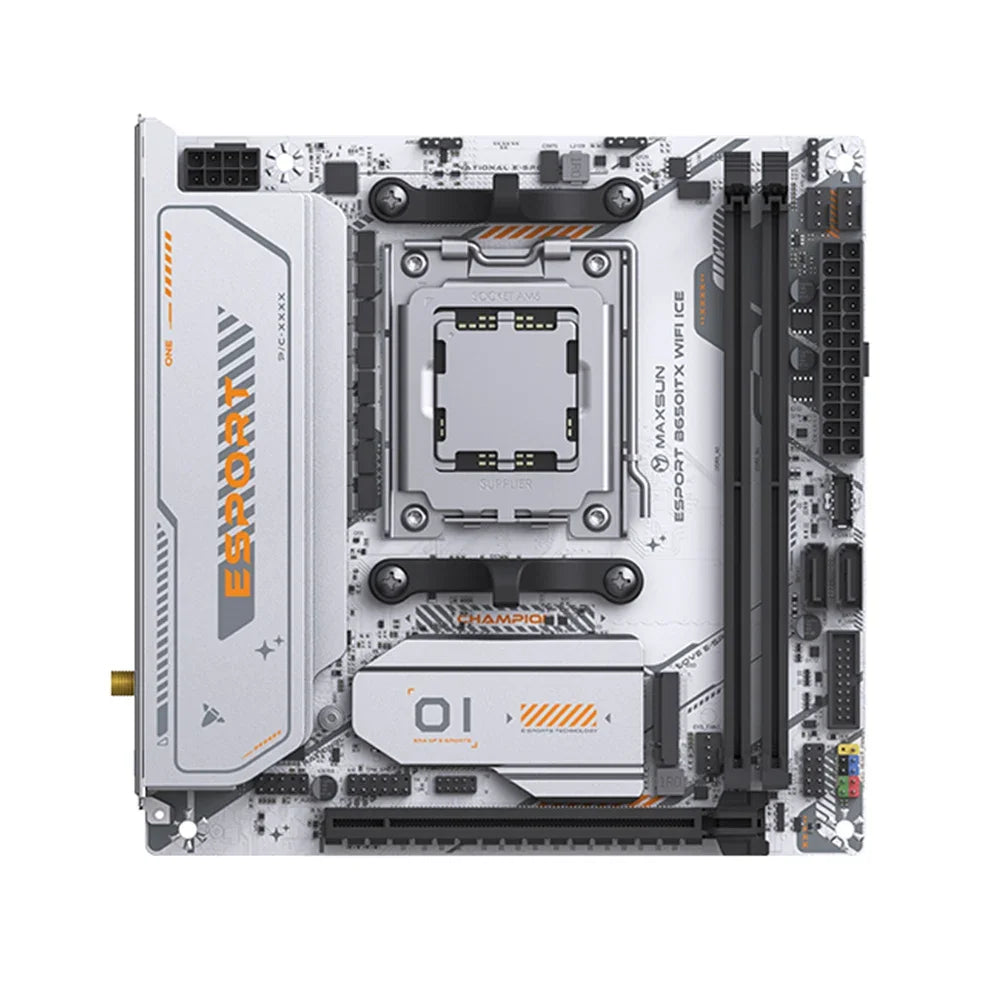

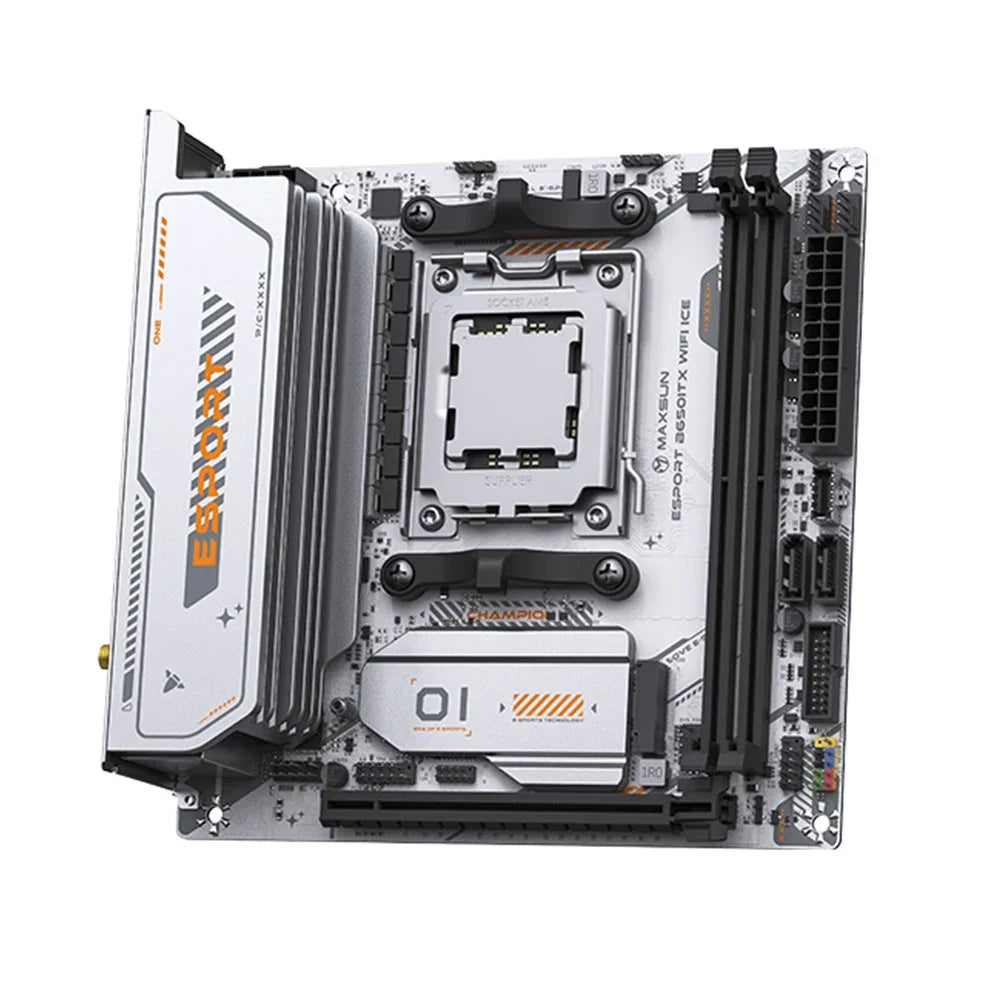

MAXSUN B650M Motherboard ITX AMD Ryzen AM5 DDR5 Supports

Motherboard size ITX(170*170mm)
CPU Supports AM5 Socket
Ryzen 7000/8000/9000 Series Processors
Chipset AMD® B650
Memory 2 U-DIMM DDR5 Memory Slots
Supports up to 96GB total
Supports Dual Channel Memory Technology
Supports memory frequencies of 4800/5200/5600(OC)
Display 1*HDMI 1.4
1*DP
Expansion
interfaces
1*PCIEX16 5.0 slot
Supports AMD/Nvidia/Intel discrete graphics cards
Audio Integrated REALTEK ALC897 audio chip
Supports simultaneous output of front and rear channels (requires settings in
high-definition audio controller)

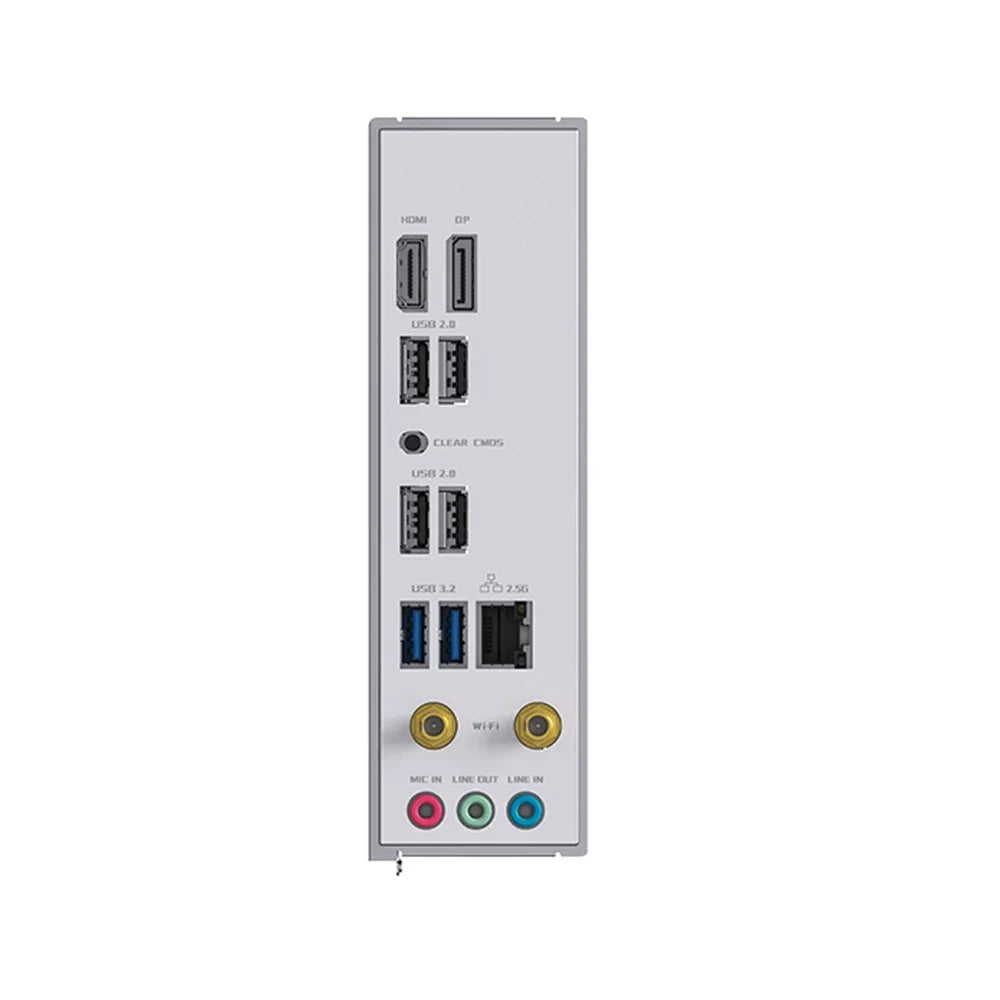

The rear is equipped with 3 audio ports: 1 rear-mounted LINE IN port, 1 rear-mounted LINE
OUT port, and 1 rear-mounted MIC_IN microphone port. F_AUDIO header: 1 set of front microphone headers, 1 set of front audio output headers
(these 2 headers are the F_Audio header group)
Network Integrated REALTEK8125BG/D network card chip (10/100/1000/2500Mbit)
1*onboard RJ45 port
Supports Wake-on-LAN
Supports PXE network boot and UEFI network boot
Storage 1 M.2 slot (supports 2242/2280 PCIe 4.0 X4/X2 channel SSDs)
1 M.2 slot (supports 2242/2280 PCIe 4.0 X4/X2 channel SSDs, located on the back of the
PCB)
2 SATA 3.0 interfaces
USB Onboard rear interfaces: 2 USB 3.2 GEN1 interfaces, 4 USB 2.0 interfaces
Onboard pin headers: 1 set (9 pins) USB 2.0 headers, 1 set (16 pins) USB 3.2 GEN1 headers, 1 USB Type-C 10G header
Onboard sockets 1 x 24PIN ATX motherboard power connector
1 x 8PIN ATX motherboard 12V power connector, 12V input
1 sets of system fan headers, 1 set of CPU fan header
1 set of chassis front control panel headers (F_PANEL)
Hardware
monitoring
Voltage monitoring
Temperature monitoring
Fan monitoring
Intelligent fan speed control (the motherboard supports it, but the fan must also support
intelligent fan speed control)
Operating System Supports Windows 10 64bit, Windows 11 64bit
Supports Ubuntu 64bit
4
ESD Protection Air discharge ± 8KV Class C
±6KV Class B
Contact discharge ± 6KV Class C
± 3KV Class B
*Tested under the condition of good grounding for the entire machine
Others 1 rear CLR_CMOS button
1 set of TPM pins
1 set of COM_A pins
2 sets of 5V ARGB pins
1 set of 12V NRGB pins
Packing
Specifications
Net Weight: 0.61kg
Gross Weight：0.85kg
Color Box Size：242*207*57mm
