MACHINIST X99 MR9S ATX Motherboard LGA 2011-3 Supports TPM 2.0 Intel
MACHINIST X99 MR9S ATX Motherboard LGA 2011-3 Supports TPM 2.0 Intel
Regular price
$119.82 CAD
Regular price
Sale price
$119.82 CAD
Quantity
Couldn't load pickup availability

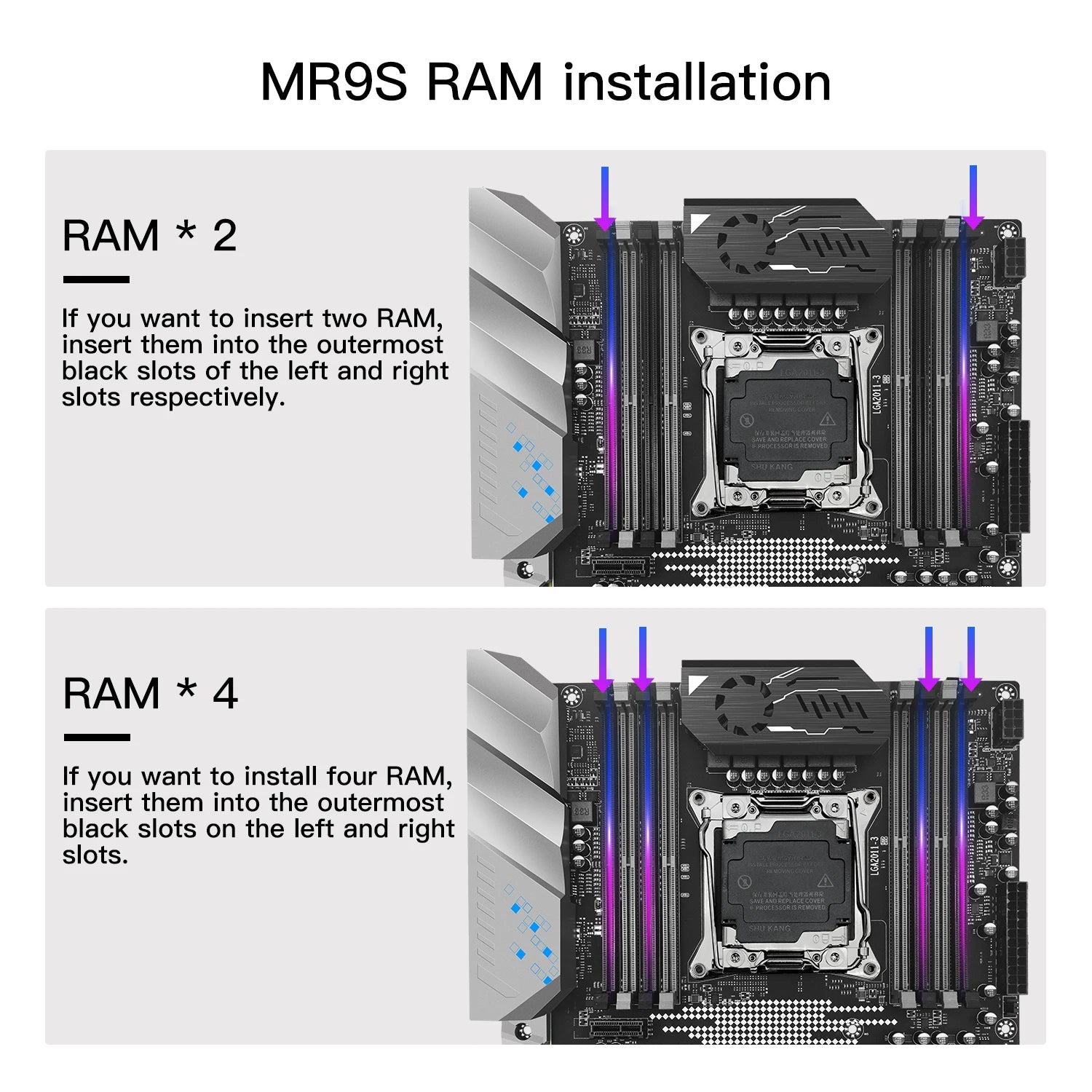

!! When inserting memory into this motherboard, please pay attention. Please refer to the detailed description in the main image.

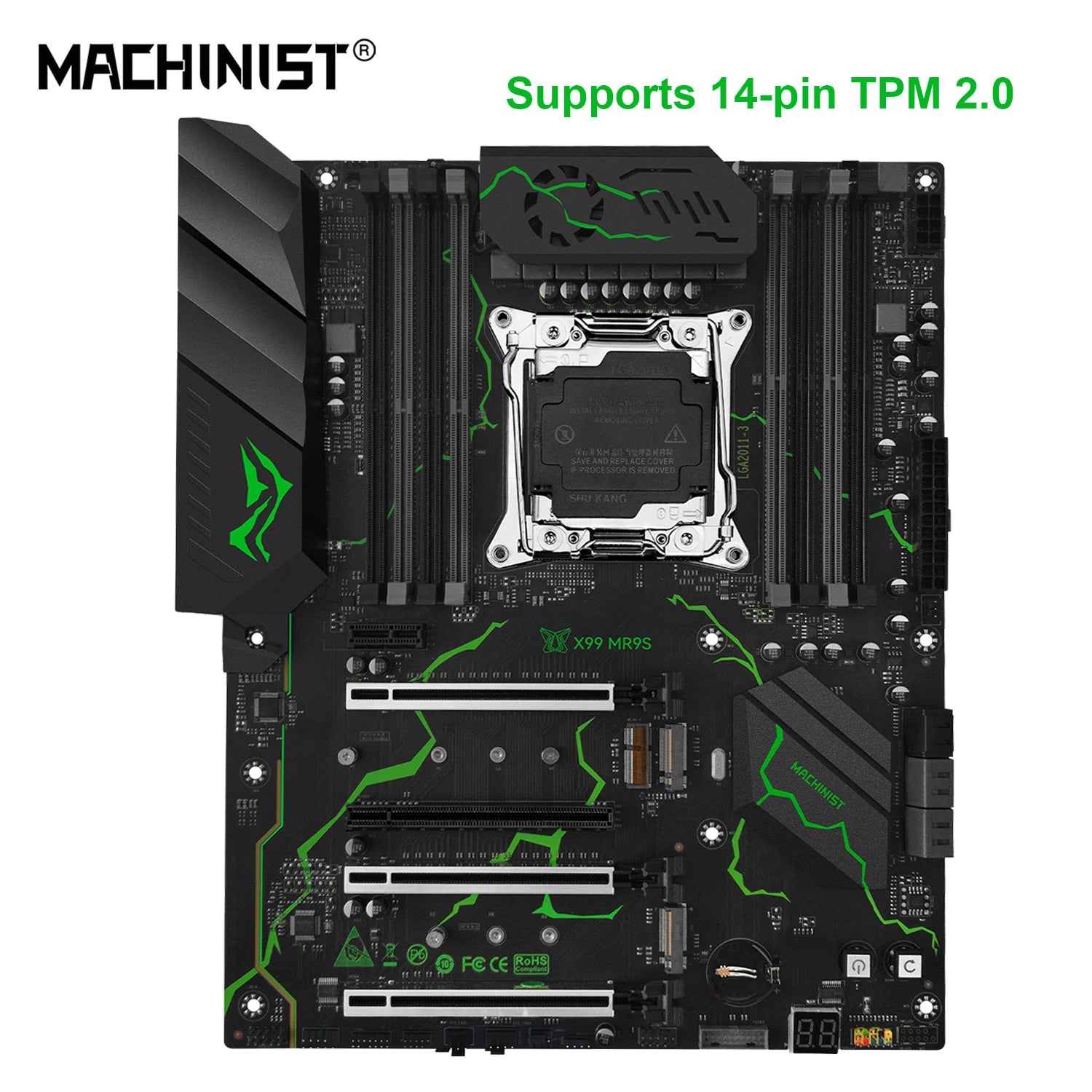

>> The TPM interface is applicable to the MSI 14-pin interface module.
>> Motherboard information:
Brand: MACHINIST.
Motherboard model: X99 MR9S.
Processor: Supports Intel LGA 2011-3-pin series processors.
Chipset: B85/X226/Q87 chipset.
>>Memory:
Technology: Four-channel DDR4. Supports 2133/2666/3200 MHZ.
The maximum capacity is 256GB (32G x 8).
Memory slot: 2* 288-pin DDR4.
Supported memory types: Supports DDR4 desktop memory and ECC memory.
Please use international brands such as Samsung, Kingston, Sandee, Micron, and Hynix. Other brands may not be compatible.

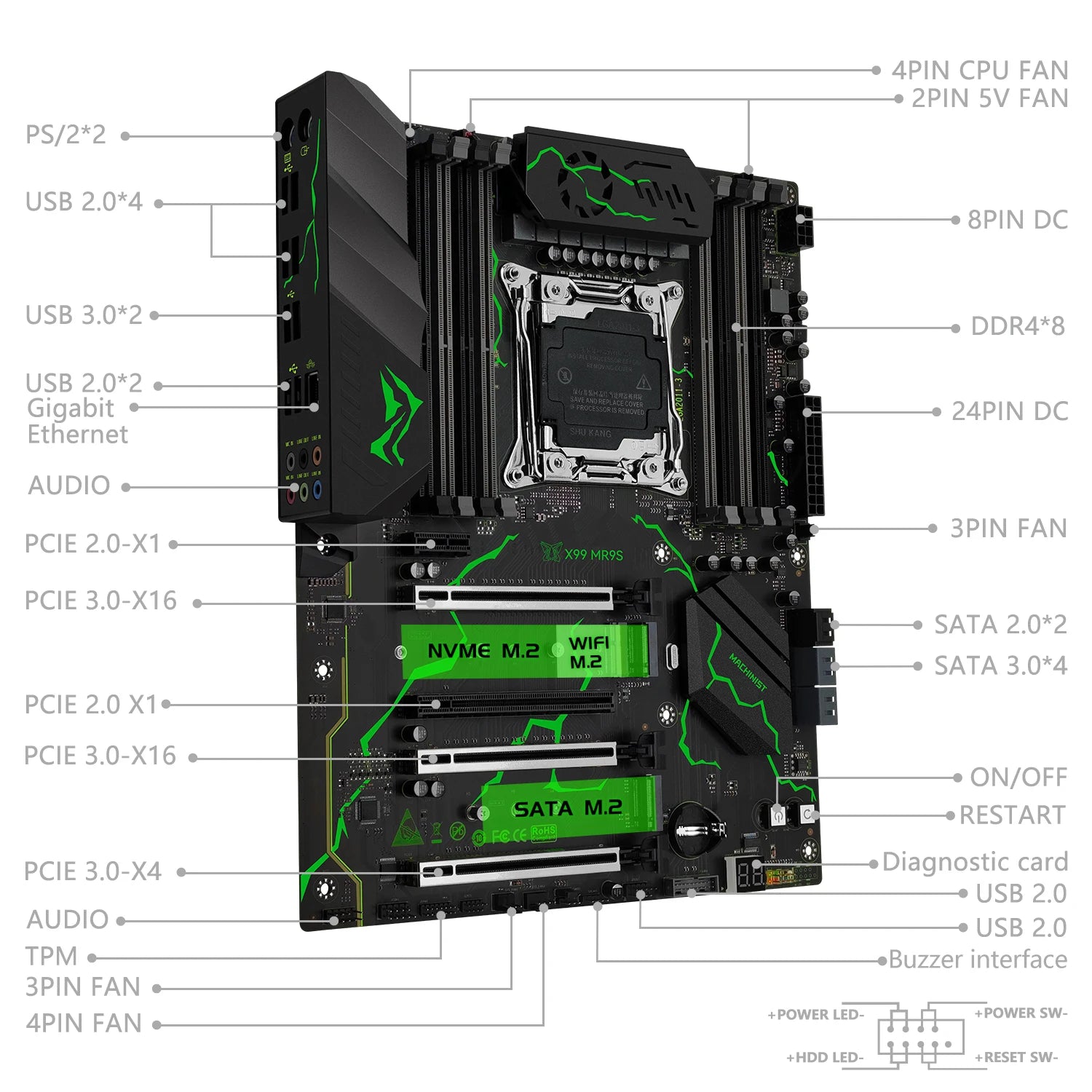

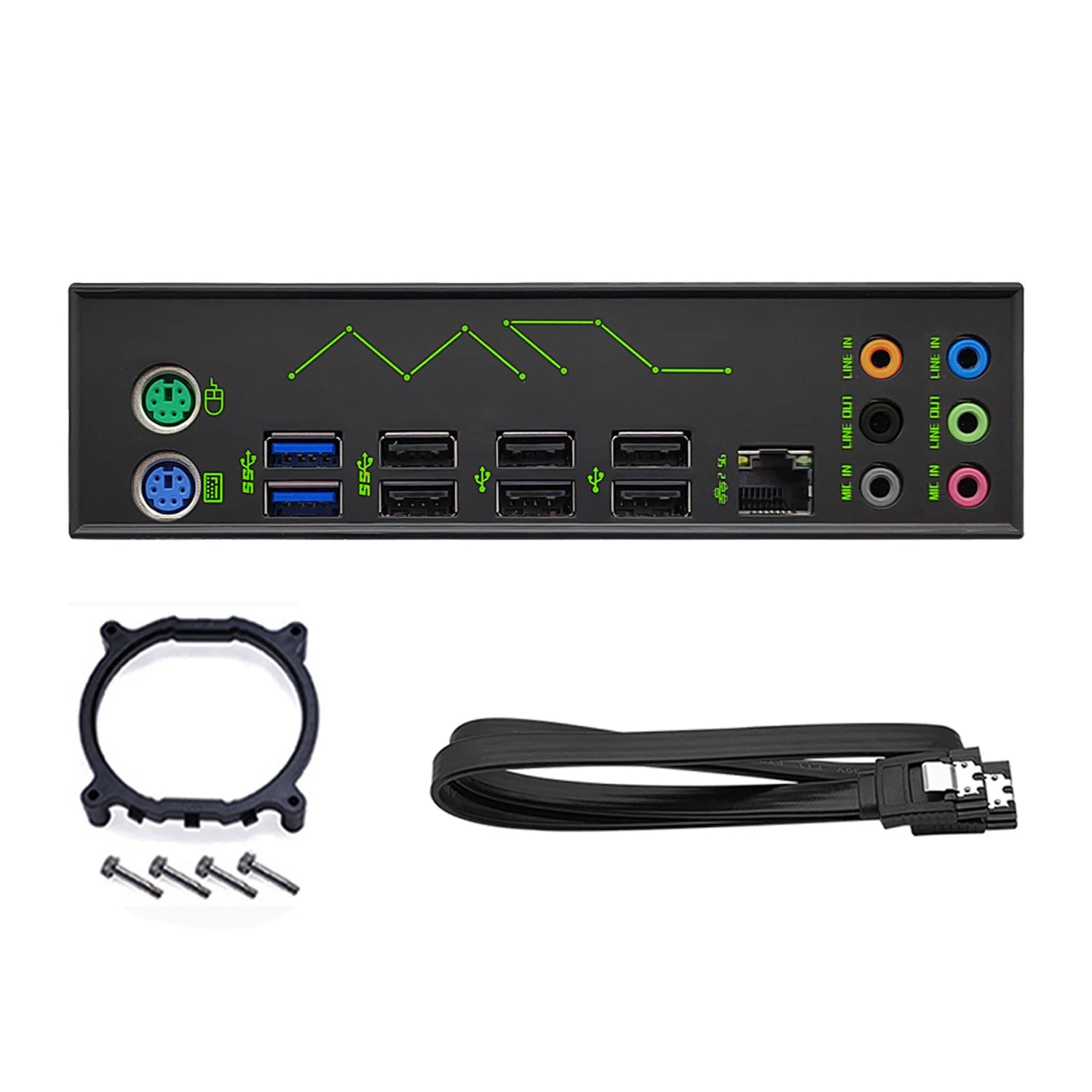

>>Post-i /O:
PS/2: 1 KB interface + 1 MS interface.
USB interface: 4 USB2.0 ports; Two USB3.0 ports.
Ethernet: Gigabit network adapter port.
Audio: 7.1 (microphone input, line output, line input).
>>Internal connector:
SATA interfaces: 4 (SATA3.0), 2 (SATA2.0)
M.2:1 PCIE interface, 1 SATA interface, 1 wifi SATA interface.."
PCIe: 3 X16 PCIe, 1 X1 PCIe, 1 pcie 3.0.![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
>>Dimensions:

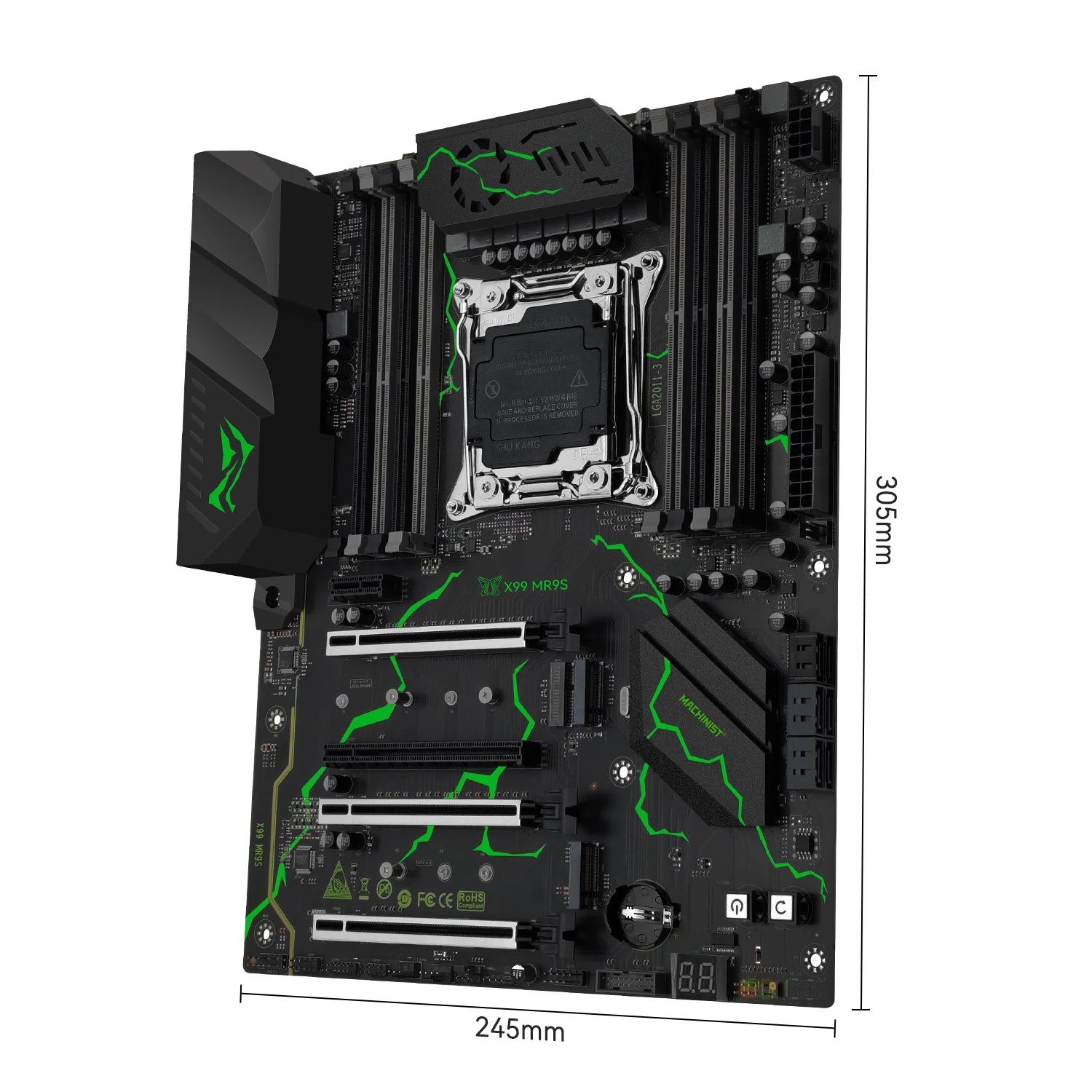

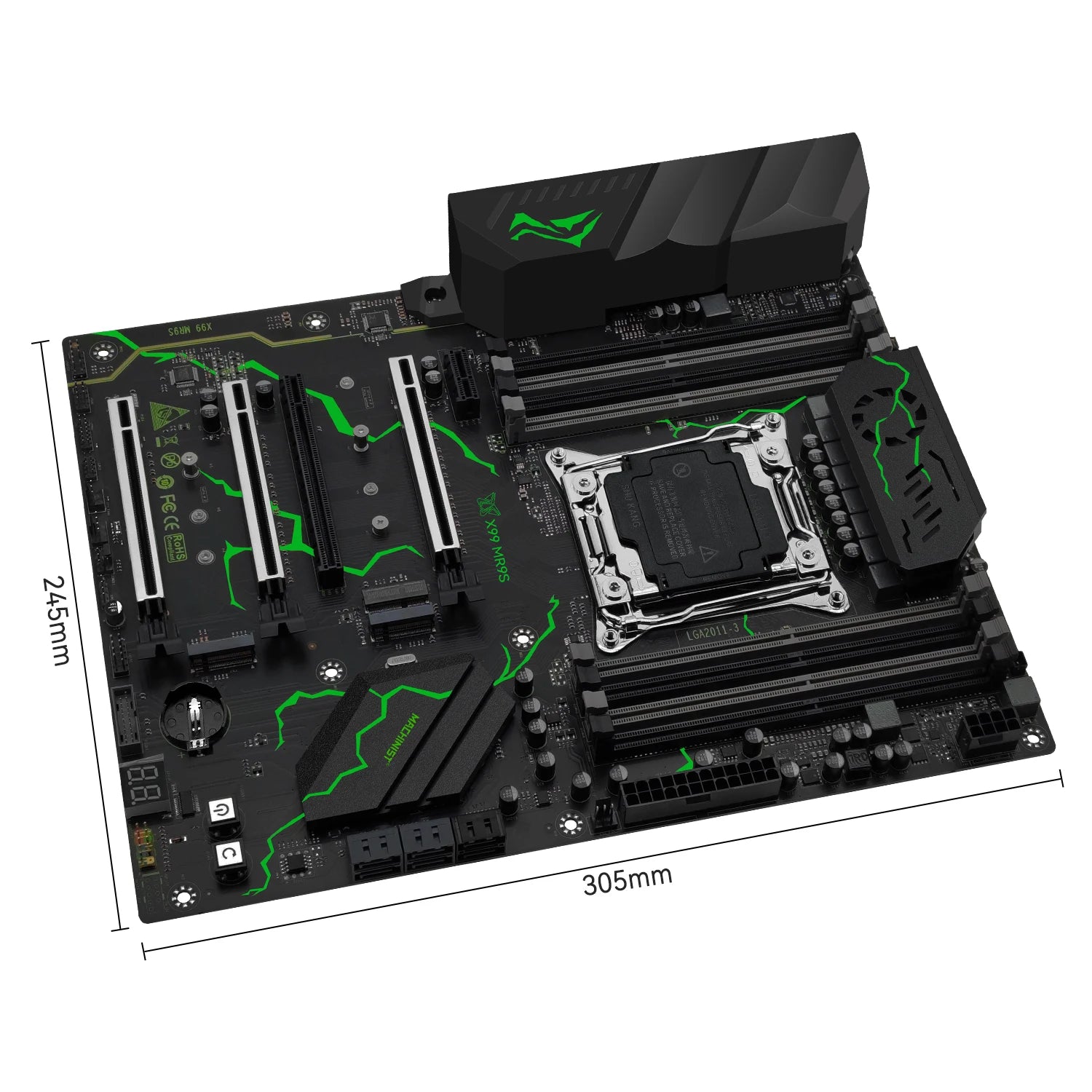

Size: 305mm*245mm.
Motherboard weight (including packaging) : approximately 1.3 kilograms.>>Regarding the tariff issue, please ensure that you can handle the customs clearance by yourself. If you cannot, we do not recommend that you purchase goods in our store. We are not responsible for tariffs. Thank you for your understanding.
>>Note:
(1) The color of the bottom plate of the trough may vary from batch to batch, but it will not affect the use of the product. The products are constantly being optimized and upgraded.
(2) Due to manual measurement, please allow an error of 1 to 3mm.
(3) Due to different displays and lighting conditions, the picture may not show the actual color of the item. Thank you for your understanding.
(4) This platform requires a powerful power supply. Please ensure that your power supply is sufficient to support this platform. (At least 500w brand power supply
(5) The battery in the motherboard photo is not included. It will be removed before shipment because the logistics requirements prohibit the use of this battery.
