MACHINIST X99 Motherboard LGA 2011-3 Xeon E5 2620 V3 CPU Processor Kit

Please check our bundles carefully before buying. When you select motherboard, only X99-B9 will be sent. Select motherboard+CPU will send X99-B9 motherboard+E5 2620 V3 processor. Select motherboard+CPU+RAM will send X99-B9 motherboard+E5 2620 V3 processor+DDR4 16GB ECC 2400MHz black memory. Please check carefully.

CPU:
Processor series: Xeon E5 2620 V3 (6 cores/12 threads)
Main frequency: 2.4GHz
Socket type: LGA 2011-3
L3 cache: 15MB
Process: 22nm

For tariff issues, please make sure you can solve the customs clearance issues by yourself. If you can't solve it, we don't recommend you to buy goods in our store, we are not responsible for tariffs, thank you for your understanding.

Interface parameters:

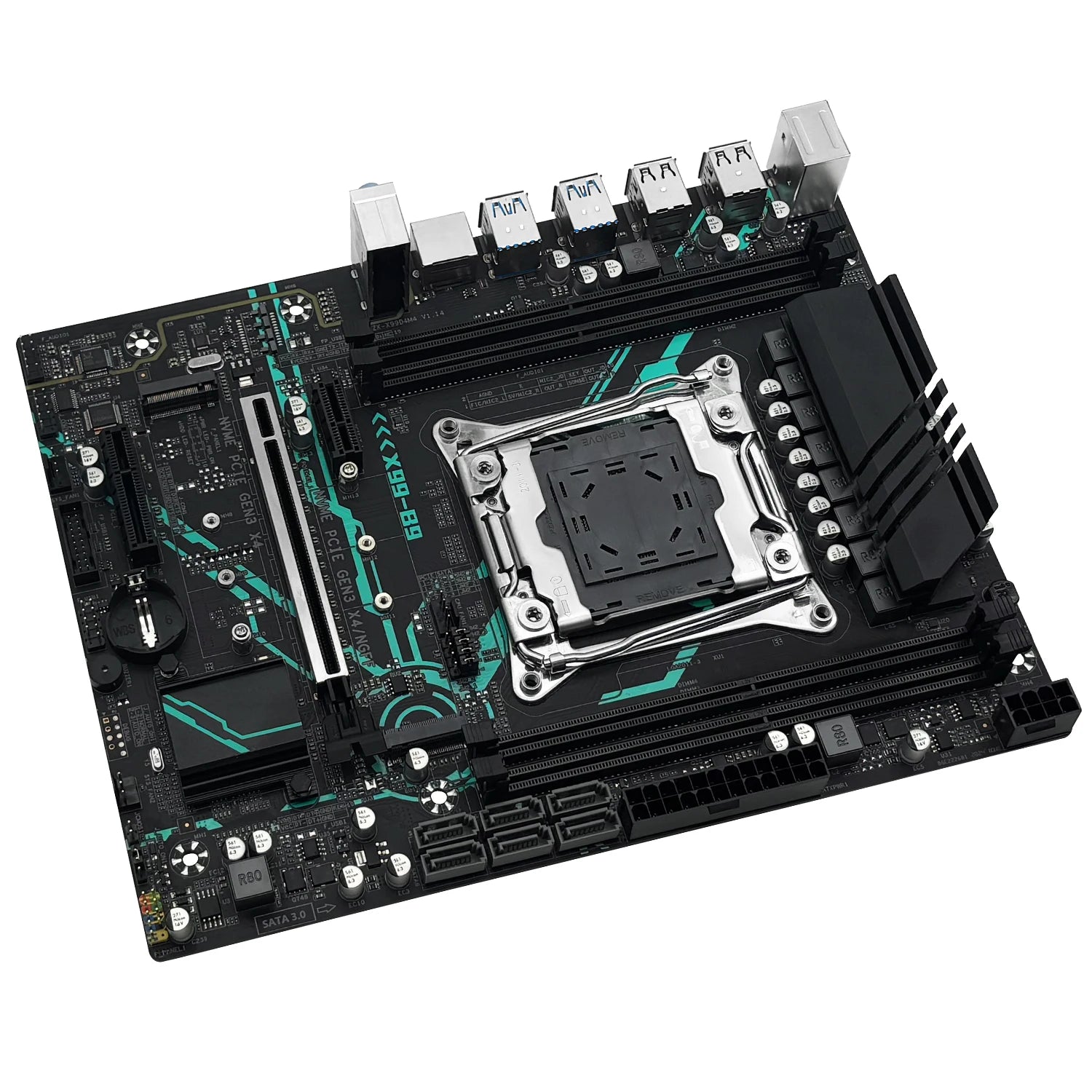

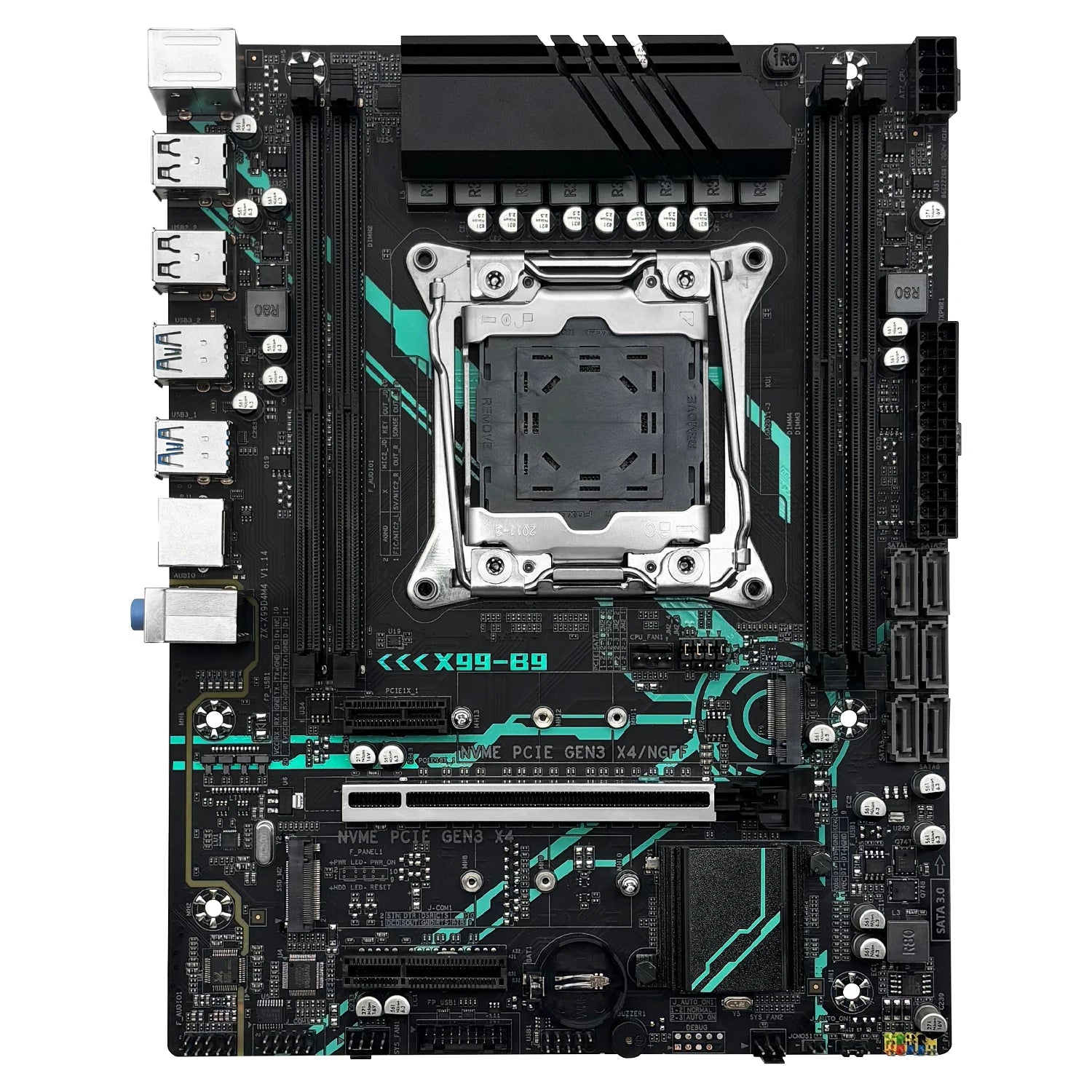

X99 B9 motherboard specifications:
Brand: Mechanic
CPU socket type: LGA 2011-3
Chipset: Intel C612
Compatible CPU types: Support Intel LGA 2011-3 sockets, such as Intel Xeon, Intel Xeon 2, Intel Core 2, etc.
Memory type: DDR4 DIMM, support desktop DDR4, server DDR4 (ECC, RECC), four channels, single slot supports up to 32GB memory, maximum memory capacity can reach 128GB (32GB*4), maximum frequency can reach 2400MHz (this depends on the CPU processor)

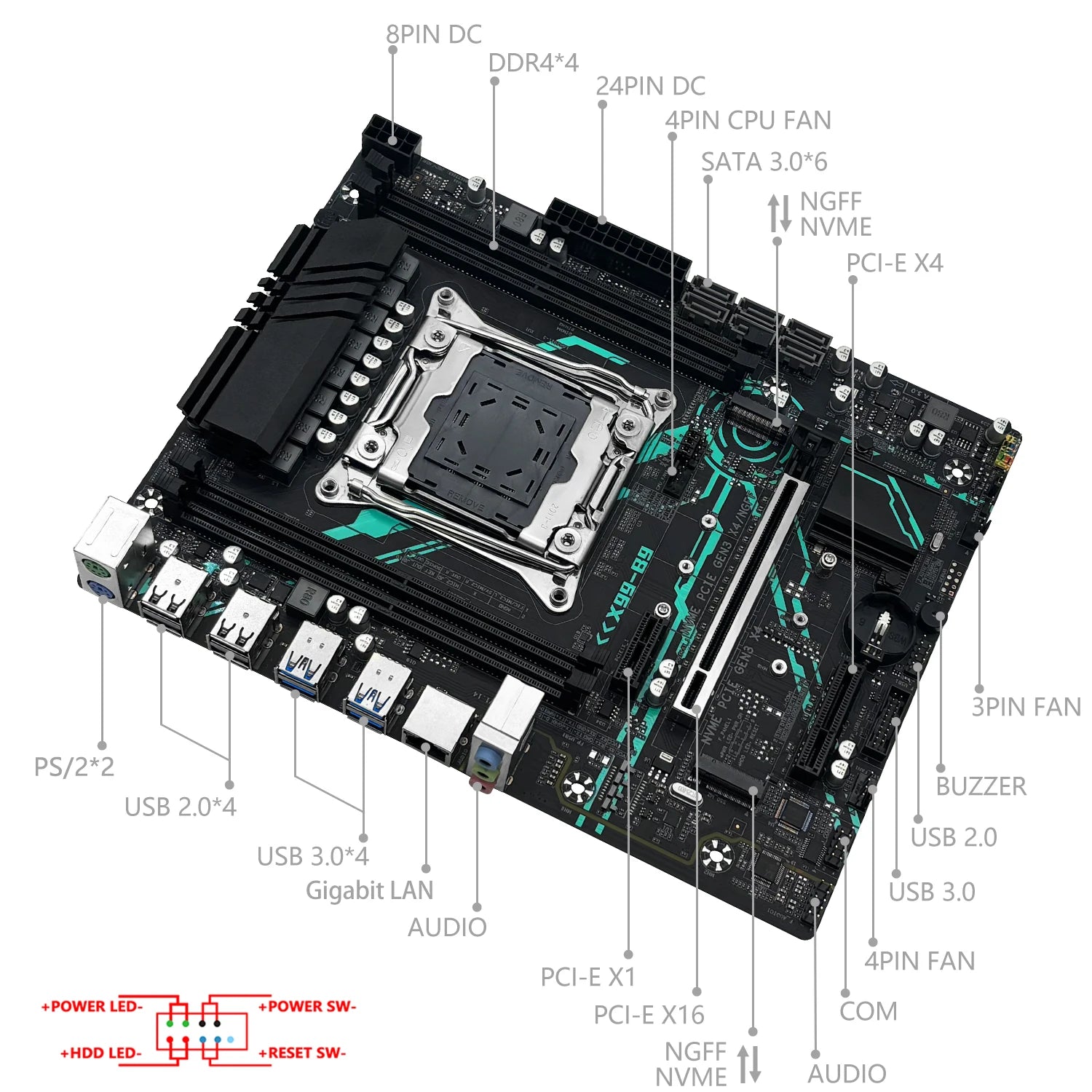

Expansion slot: 1*PCI-E 3.0 x16, 1*PCI-E 2.0 x4, 1*PCI-E 2.0 x1
Storage: Support M.2 SSD, 2.5-inch/3.5-inch SATA SSD and mechanical hard disk.
Support SATA (NGFF)/PCI-e (NVMe) protocol switching, the default state is NVMe M.2 mode.
NVMe M.2 mode is PCIe 3.0x4 standard, with the fastest read and write speed up to 3600M/S.
Sound card: Realtek ALC897 high-fidelity sound card
Network card: Realtek 8111H Gigabit network card

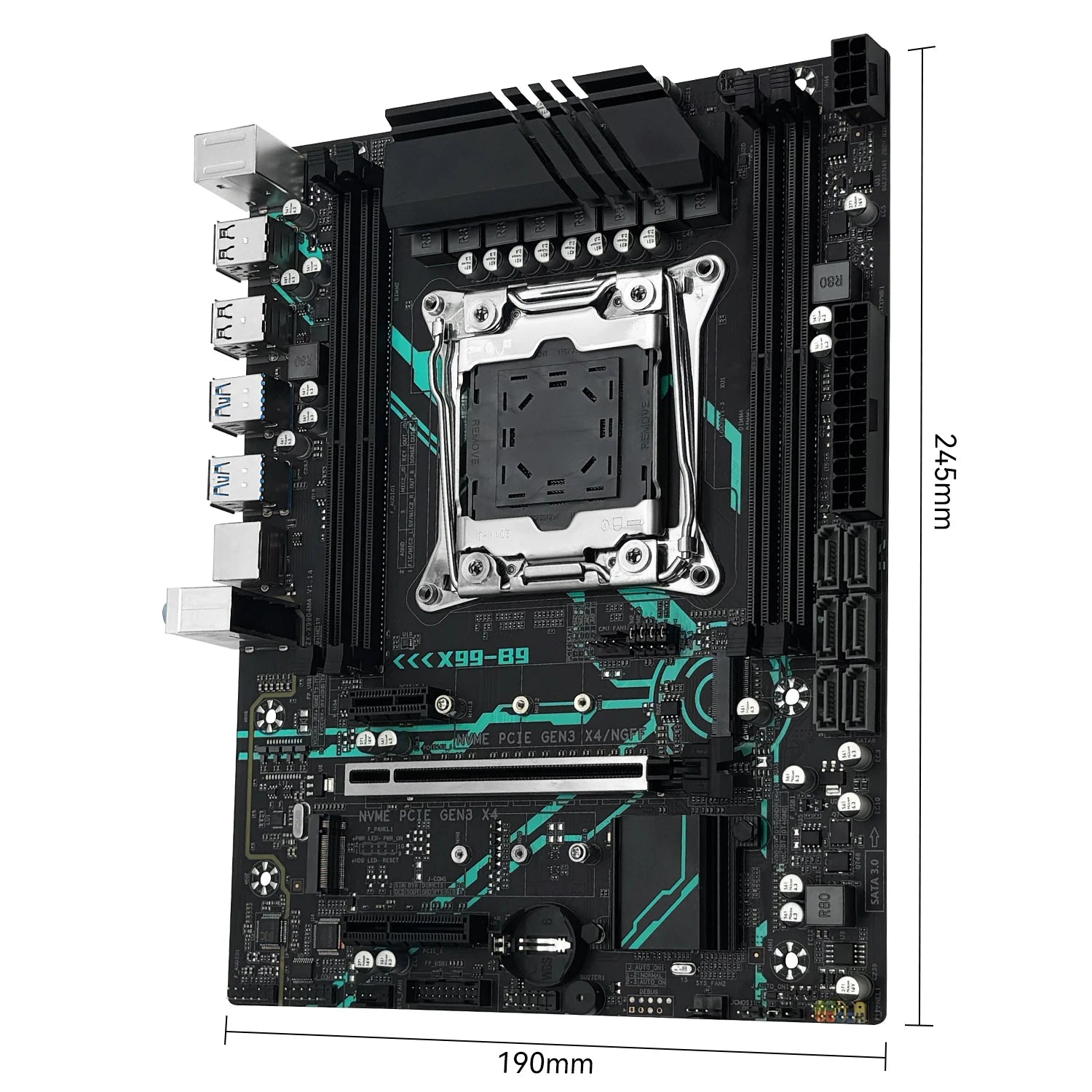

Size: 245*190*35mm, MM,
Shortcut key: F11
Enter BIOS: Press the power button, press and hold the "DEL" key until the BIOS interface appears.

BIOS features:
Diskless boot: Supported
Sleep: Not supported
Decoding above 4G: Supported
Virtualization (): Supported
Adjust BAR decoding size: Supported
Recover AC power failure: Supported
RAID: Support RAID0, RAID1, RAID5
Boot without graphics card: Supported
Memory timing modification (XMP): Not supported
Fan speed adjustment: Only supports CPU_FAN1 interface
Power supply: 8-phase power supply (4 times phase), PWM controller is uP1649Q, each phase power supply MOS tube is one up and one down, a total of 16 MOS tubes!

CPU and System Fan:
CPU_FAN1: Support intelligent temperature control, high CPU temperature, fast fan speed, low CPU temperature, low fan speed.
SYS_FAN1: No temperature control, fan running at full speed;
SYS_FAN2: No temperature control, fan running at full speed;
J_AUTO_ON1 Jumper Cap:
Restore AC power-off jumper cap, default to off state.
If you move the jumper cap to the right two pins to "ON" state, the motherboard will automatically power on when the motherboard is powered on.
Method to clear CMOS:
Turn off and use tweezers or other metal conductive objects to short the 2-pin JCMOS1 jumper for 3-5 seconds.

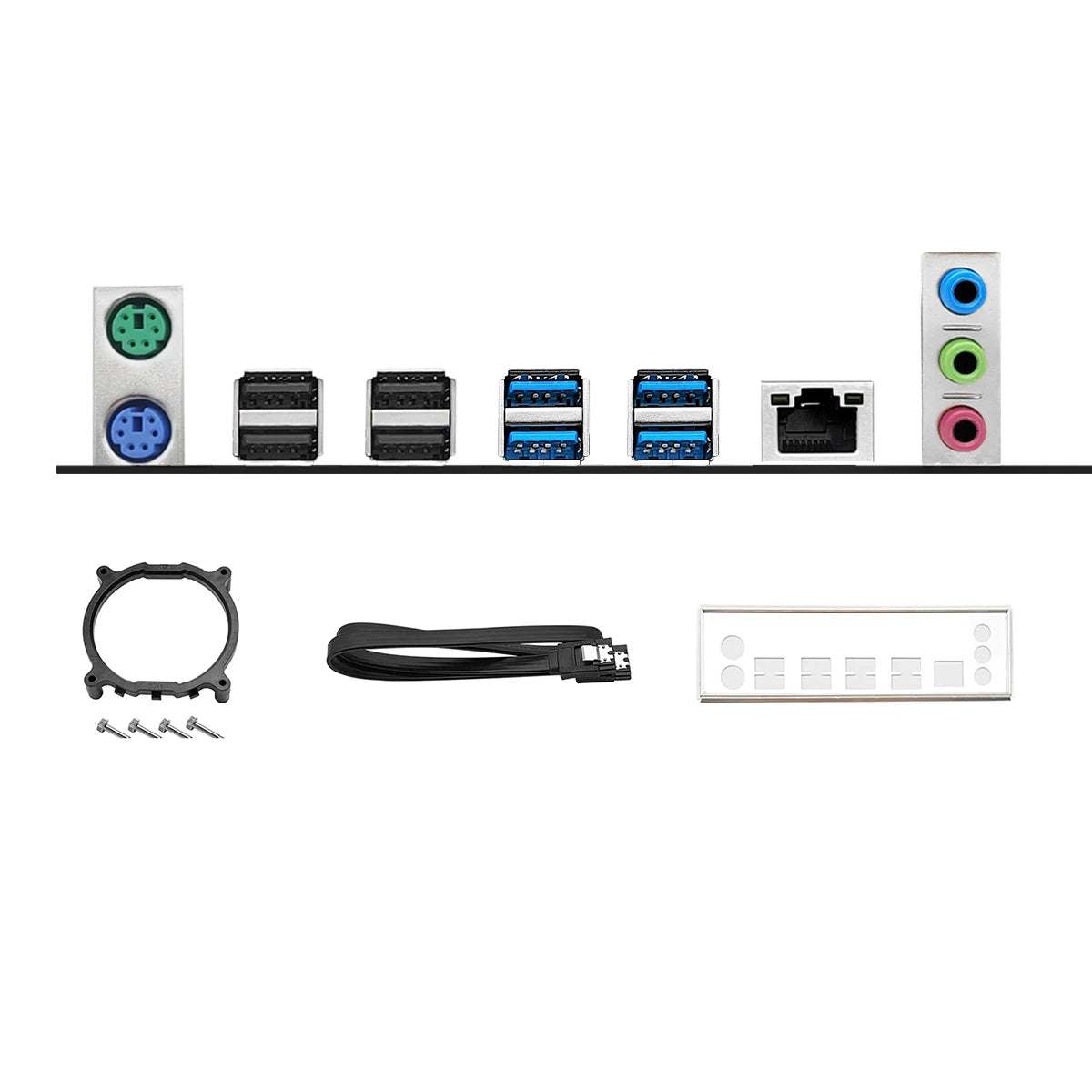

Package Contents:
1 X99 B9 X99 LGA 2011-3 Motherboard
1 * CPU Cooling Bracket
1 I/O Shield
1 * SATA Cable
Important! - There is no user manual and controller in our box, but we have PDF version, if you need them, please let us know and we can send them to you by email. If you mind them, please don't buy it. Thank you for your understanding and time.

Note:

1. All motherboard memory processors are strictly tested before shipment.
2. The battery in the motherboard photo will be removed before shipment because China Post and Customs prohibit the use of batteries.
3. For tax issues, please ensure that you can solve customs clearance issues by yourself. If you cannot, we do not recommend that you purchase goods in our store. We are not responsible for customs duties. Thank you for your understanding.
4. Used to install memory. All RAM needs to be installed in slot #1 and slot #2 green slots) first. The motherboard's black memory slots (#3/#4) do not work alone. The memory needs to be inserted into the yellow main slot first.
