MACHINIST RS9 X99 Motherboard Kit LGA 2011-3 Set Xeon E5 2680 V4 CPU +

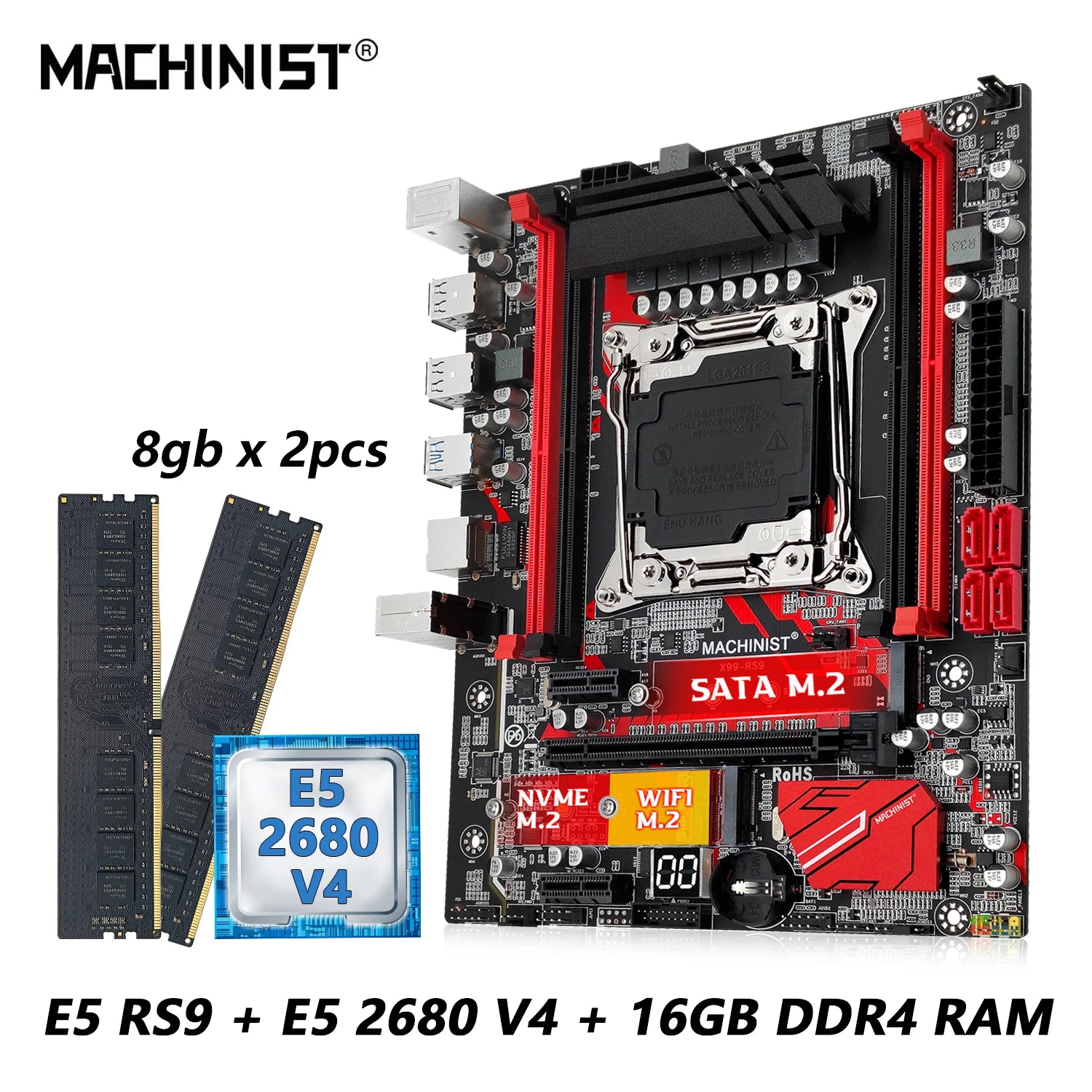

Package contains:

Motherboard: MACHINIST E5 RS9 LGA 2011-3 motherboard *1pcs.

Processor: Intel Xeon E5 2680 V4 *1pcs.

RAM: DDR4 8GB desktop memory *2pcs.

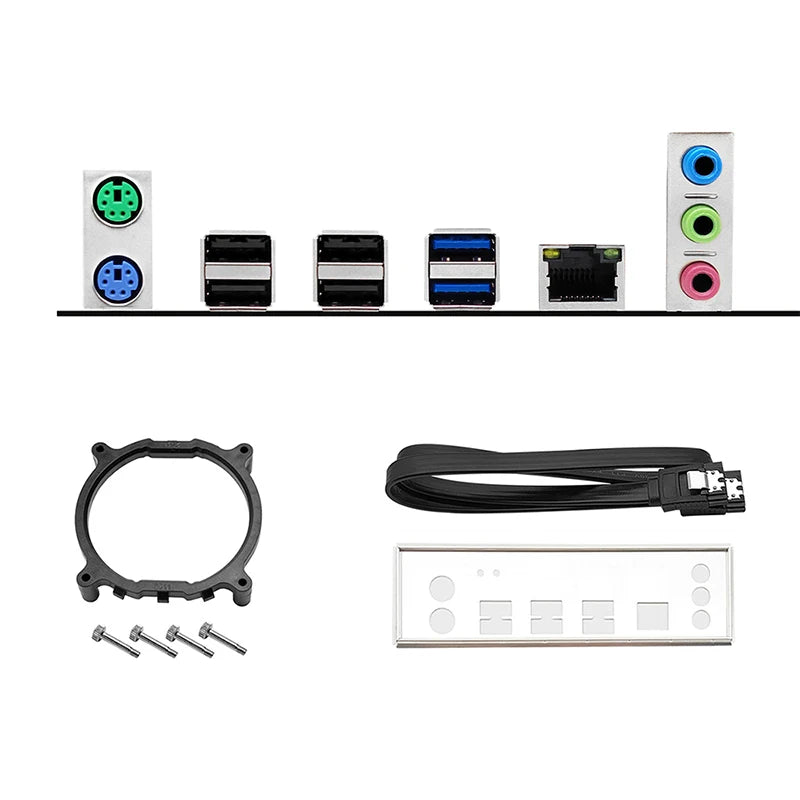

Free accessories: I/O shield *1, SATA cable *1, lga 2011 cooling bracket *1.

(!!! Everything is manually tested and packaged before sending. If there are any gifts missing, please understand!)

Processor information:

Model: E5 2680 V4,

CPU frequency: 2.4GHz,

Number of cores: 14,

Number of threads: 28,

Turbo frequency: 2.7GHz,

Manufacturing process: 14nm,

TDP: 120W,

The processor supports memory specifications: DDR4-1600/1866/2133/2400.

Motherboard information:

>>Brand:MACHINIST.

>>Motherboard model: E5 RS9.

>>Processor: Supports Intel LGA2011-3-pin series processors.

>> Chipset: B85/Q87/c226 Chipset.

>>Memory

Technology: Quad Channel DDR4. Support 2133/2400/2666/3000/3200 MHZ.

Maximum capacity 128GB (32G x 4).

Memory slot: 4*288 PIN DDR4.

Supported memory types: Memory types support DDR4 desktop and server memory.

(Note: Please use international brands such as Samsung, Kingston, Sandee, Micron, Hynix, etc. Other brands may be incompatible.)

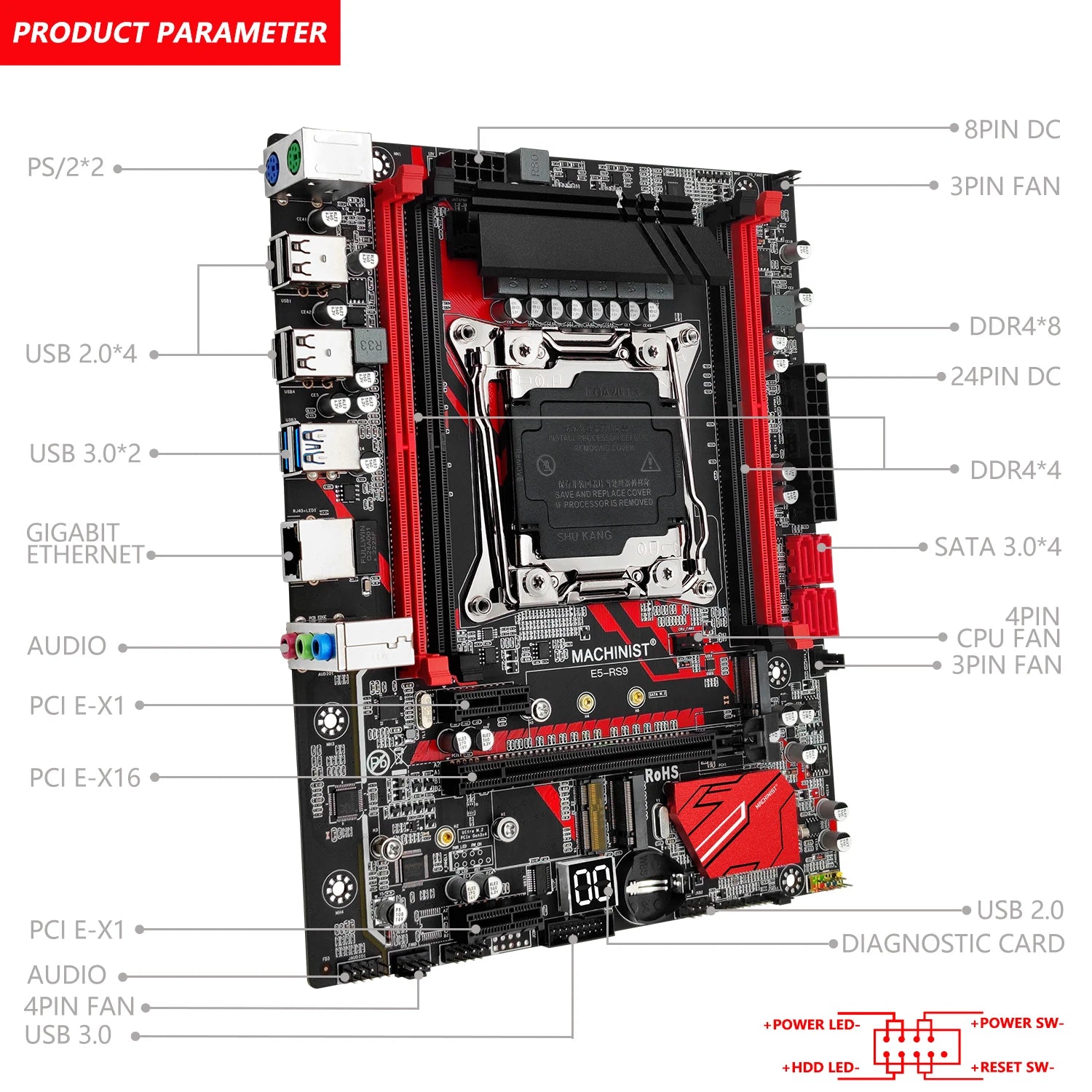

>> Post I/O

PS/2: 1 KB interface + 1 MS interface.

USB interface: 6 USB2.0; 2 USB3.0.

Ethernet: 1 Gigabit network card.

Audio: 1 (Mic-in, Line-out, Line-in).

>>Internal connector

PCIe: 1 PCIe 16x, 1 PCIe 1x.

F_PANEL: 1 2x5Pin pin.

SATA ports: 4 (4 SATA3.0);

1 standard 1x8PIN power socket; 1 standard 1x24PIN power socket;

JAudio: 1 2x5Pin pin;

Diagnosis card: 1 piece;

M.2 interface: 2 (1 PCIe + 2 SATA)

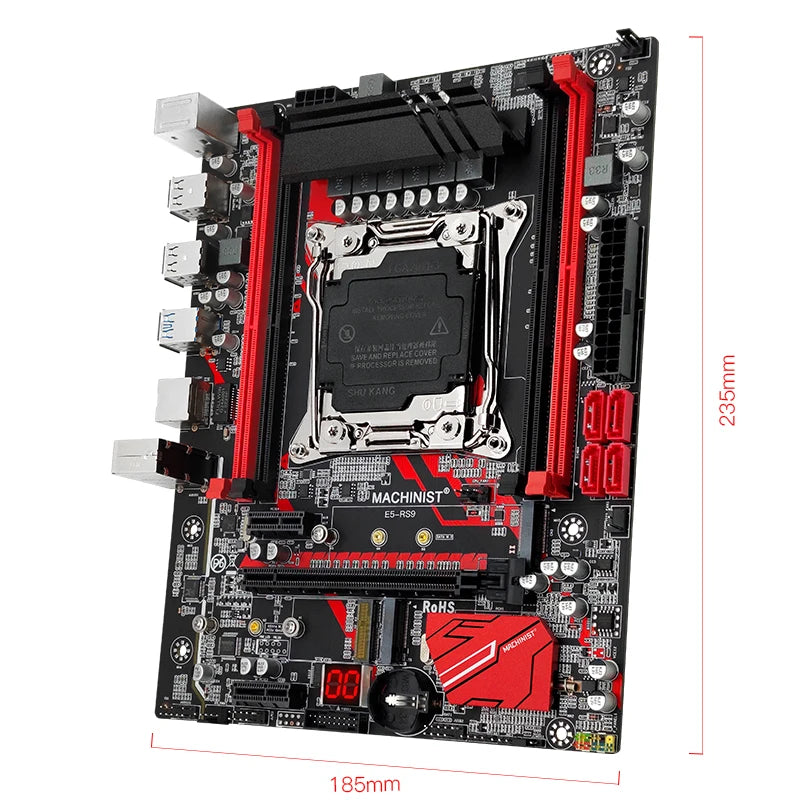

Overall dimensions: 235mm * 185mm.

Motherboard weight (including packaging): about 0.95 kg.

>> Regarding customs issues, please ensure that you can solve the customs clearance problem by yourself. If you cannot solve it, we do not recommend that you purchase goods in our store. We are not responsible for customs duties. thank you for understanding.

Notice:

(1) The color of the tank bottom plate may vary from batch to batch, but it will not affect the use of the product. Products are continuously optimized and upgraded.

(2) Due to manual measurement, please allow an error of 1-3mm.

(3)Due to different displays and different lights, the pictures may not show the actual color of the item. thank you for understanding.

(4) The platform requires a powerful power supply. Please make sure your power supply is sufficient for this platform. (At least 500w brand power supply)

(5) The battery in the motherboard photo is not included and will be removed before shipment because logistics requirements prohibit the use of this battery.
