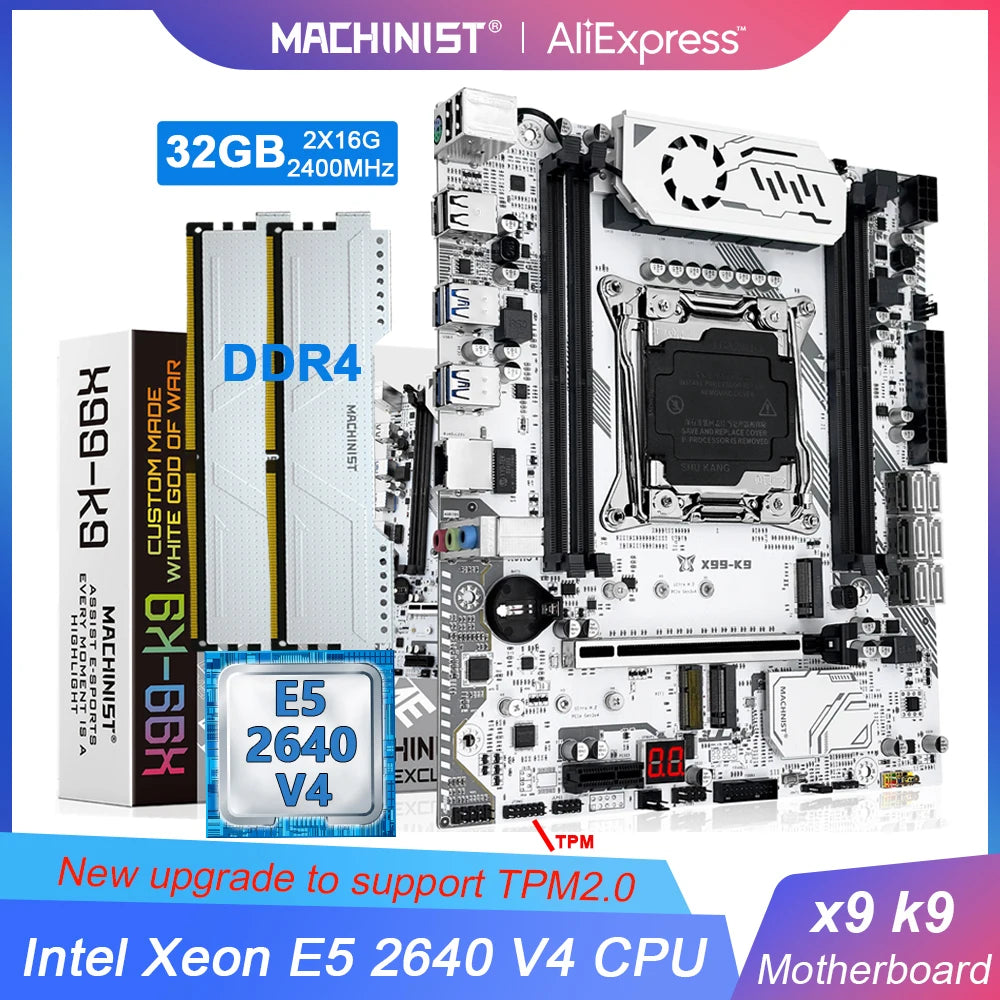

MACHINIST k9 X99 C612chip Motherboard Set LGA2011-3 Kit Xeon E5 2640

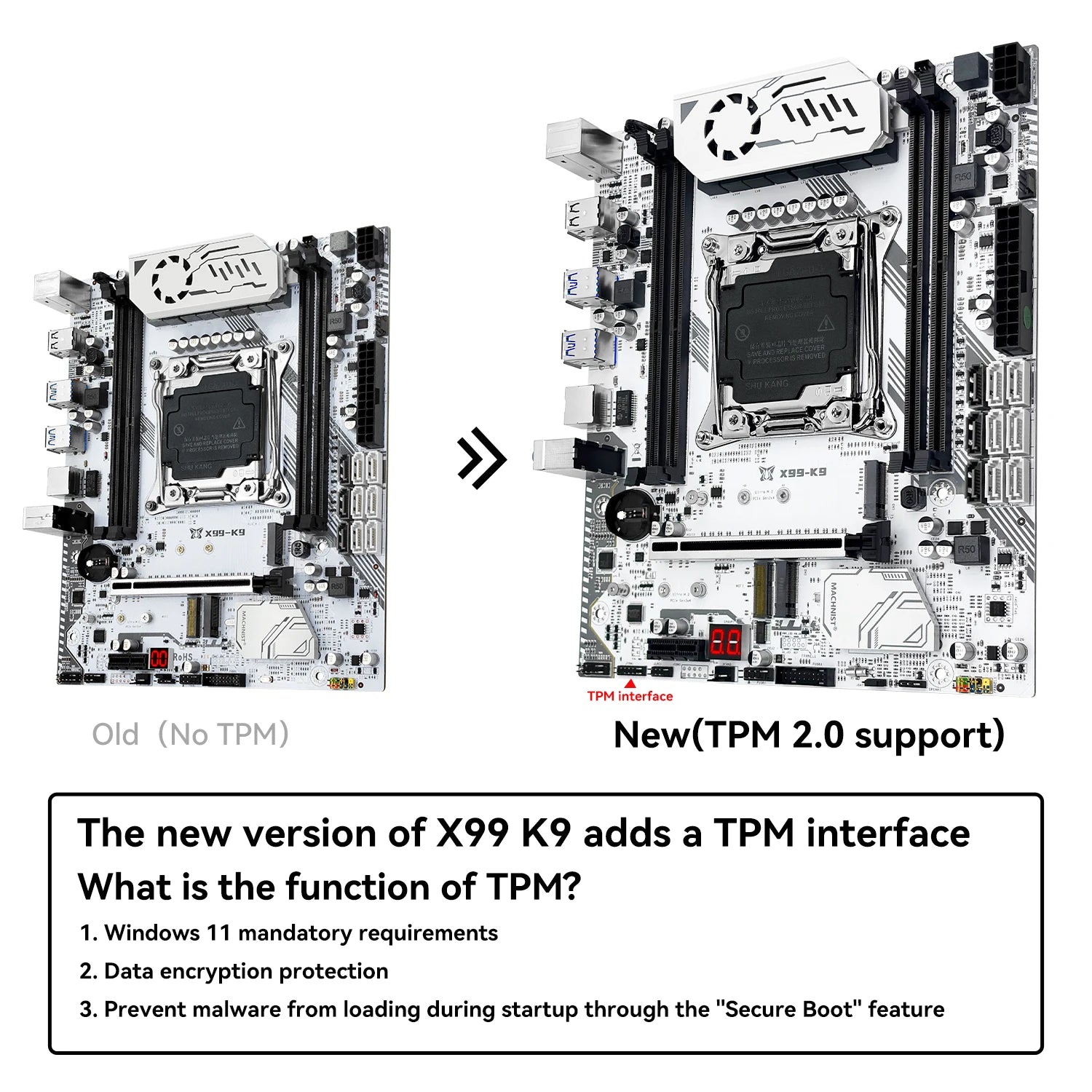

Please note that for this new upgrade and new experience, starting from August 1st, TPM2.0 only supports the MSI 14-pin interface.

Friends, please check our packages carefully before buying. Please pay attention to the bundle options before purchasing. Buy a single motherboard. We do not send CPU and memory. Please check carefully.

CPU:
Processor series: Intel Xeon
Model: E5 2640 V4
Processor speed: 2.4GHz
Processor socket: 2011-3
Number of CPU cores: 10
Number of threads: 20
Third level cache size (mb): 25mb
TDP：90w

Note:
1: CPU is used, condition good, 1 year warranty
2: There may have some little physical scratches on the surface of the CPU, this is pretty normal.
3: All CPU are strictly tested before shipping

Memory:
Type: ECC REG (server memory)
Frequency: DDR4 2400MHZ
Capacity:32G (2*16G)

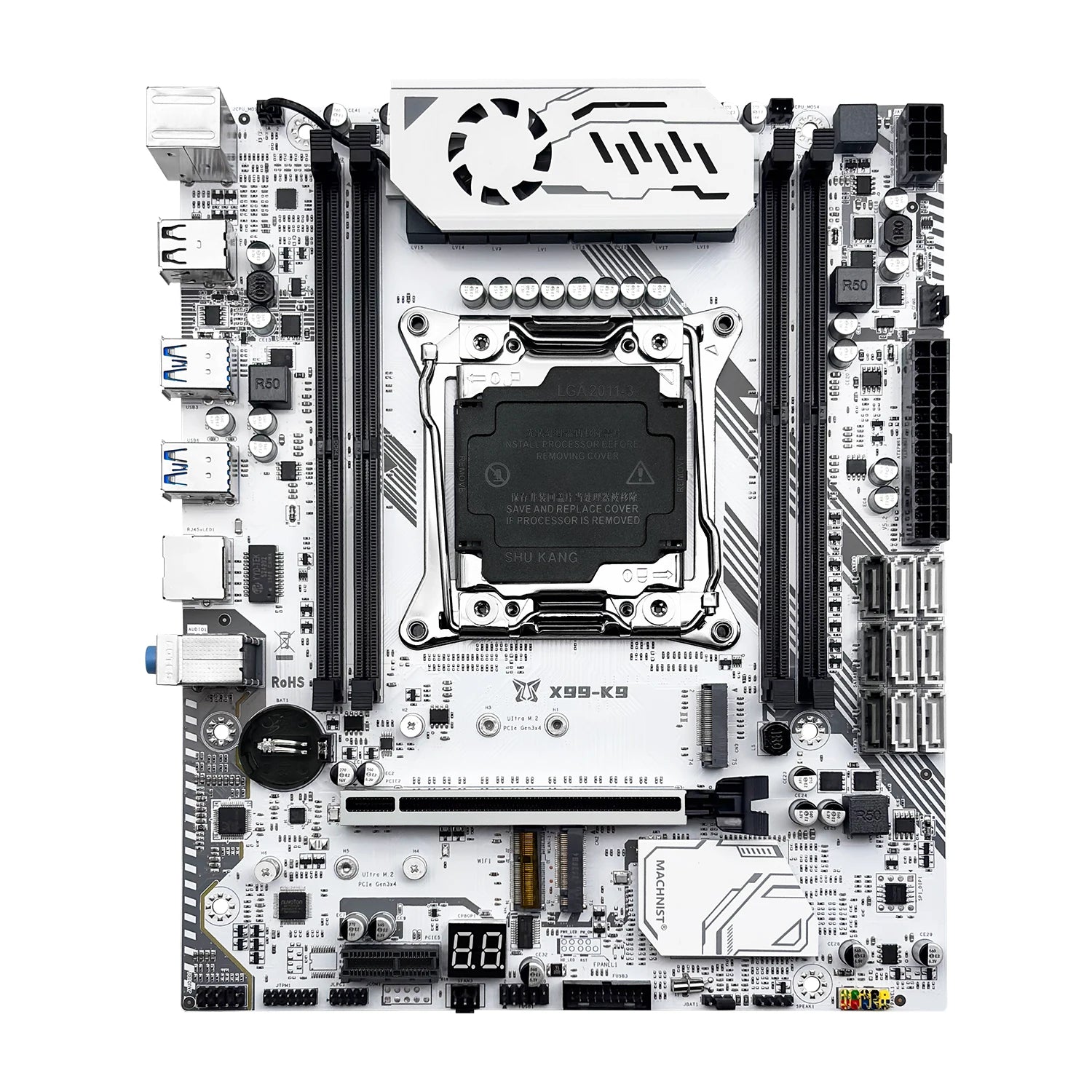

Motherboard parameters:

Brand: MACHINIST
Model: X99 (E5-K9)
Processor: Support Intel LGA 2011-3 pin series processor
Chip: X99 series chipset
Maximum memory capacity: 128GB
Support high-speed DDR4 quad-channel memory slot: Support 2133/2400/2800/3200MHz
Memory slot: 4*32GB
Supported memory type: Support DDR4 desktop memory and server memory. The two memory types cannot be used at the same time and may not be compatible.
Support Win10 32/64-bit operating system

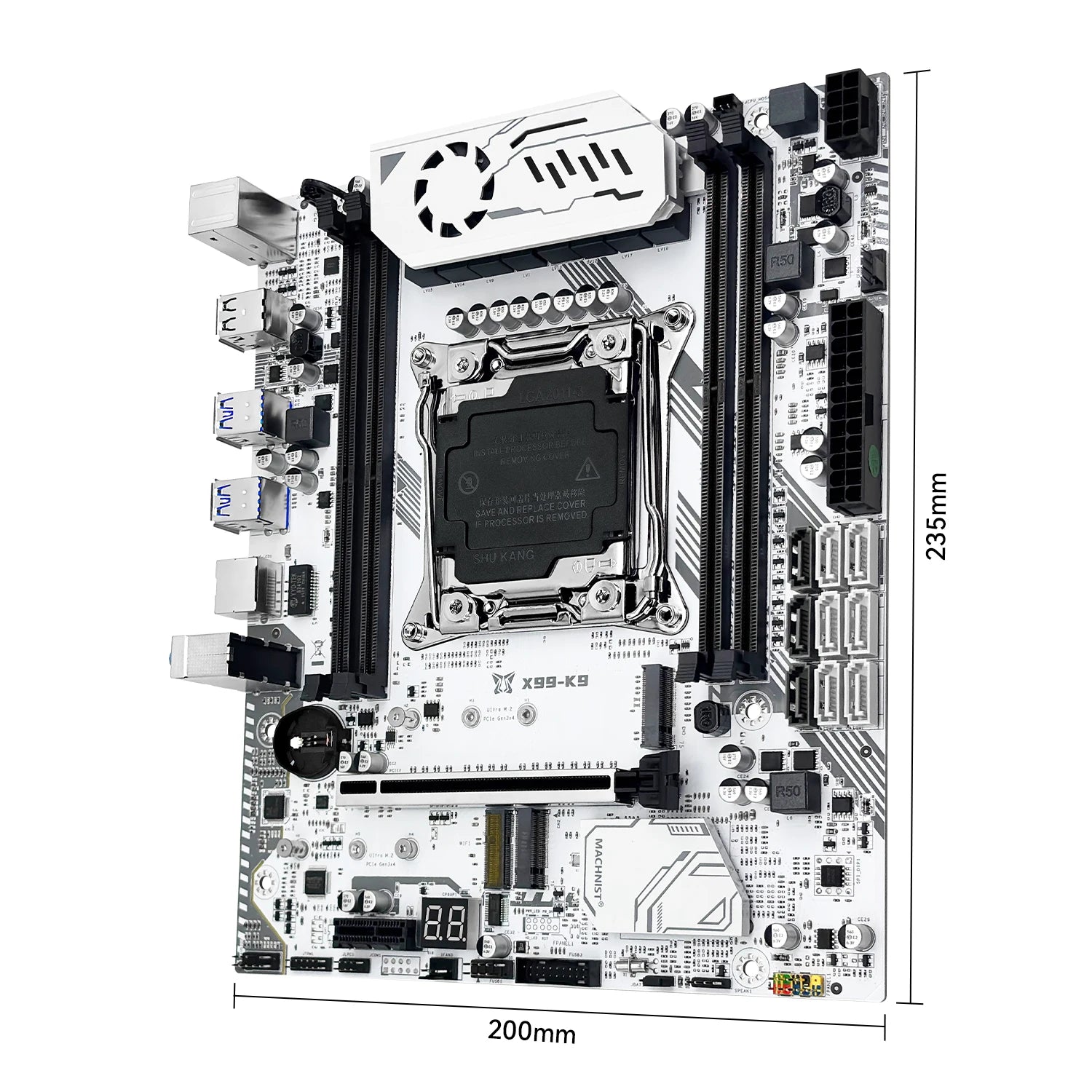

Size: 238mm*200mm
Motherboard type: M-ATX
Weight: About 1.15 kg

Features:

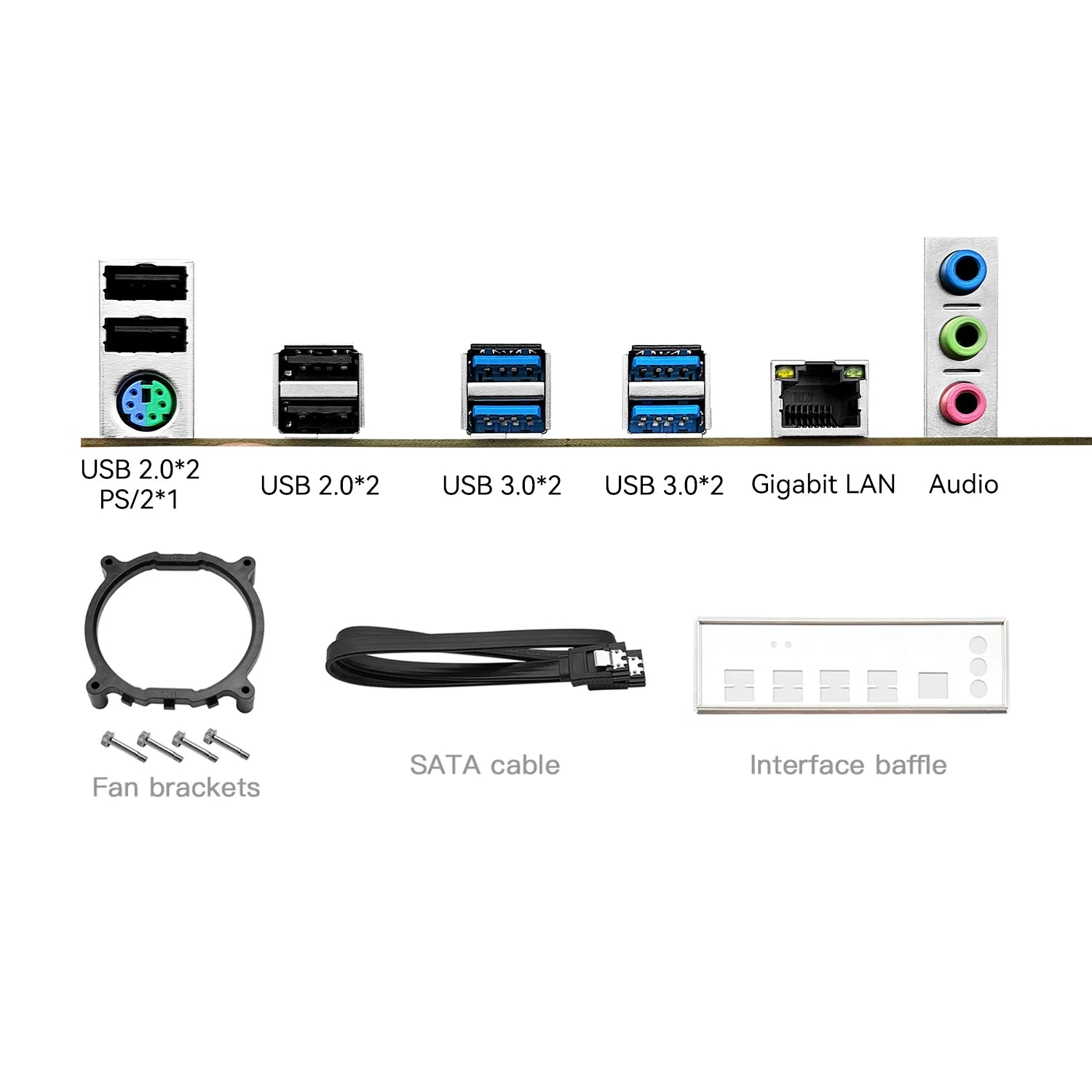

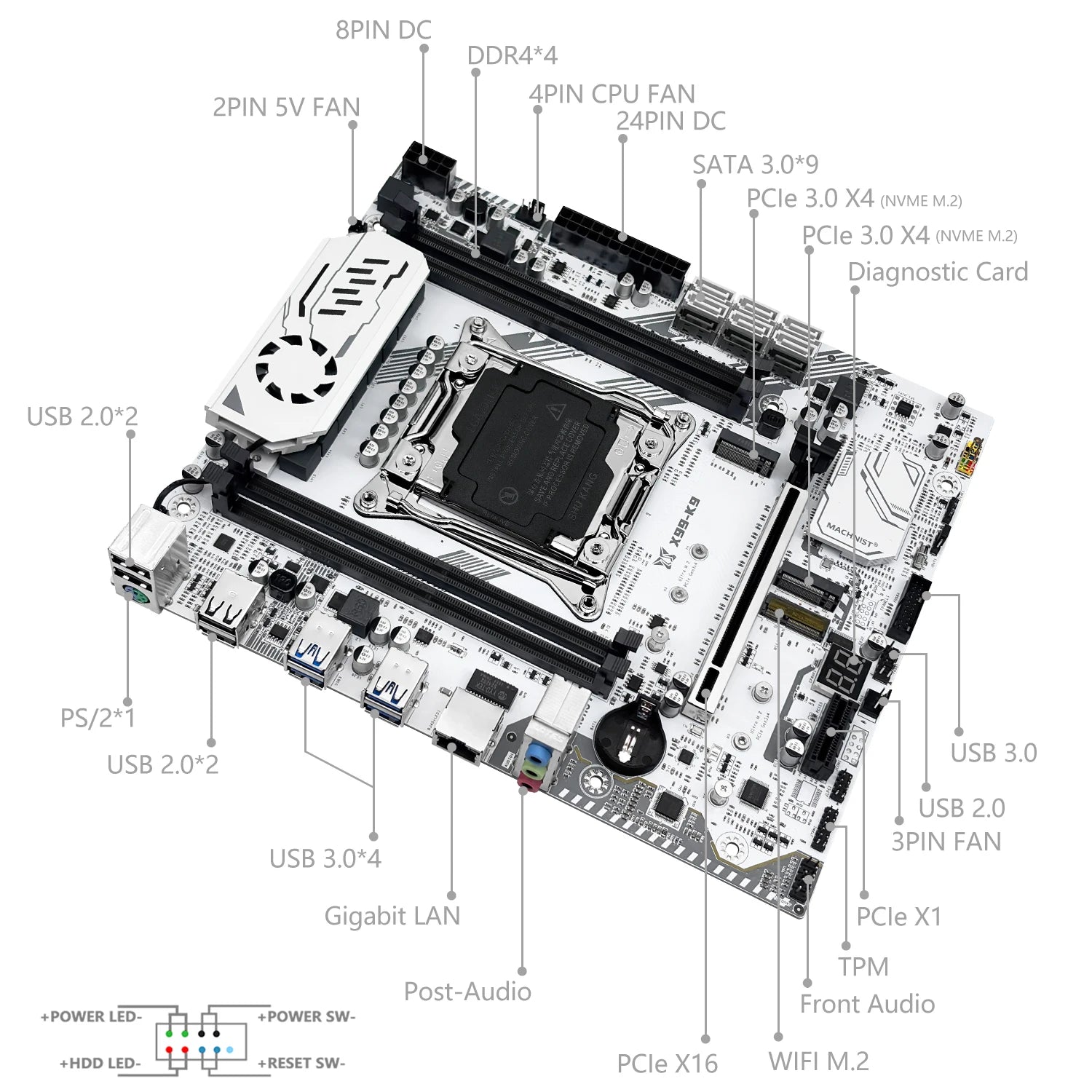

Rich expansion options: This motherboard is equipped with two PCIe slots and supports USB 3.0, providing ample expansion and connection space.
Intel Xeon Scalable Processor Compatibility: This motherboard is optimized for Intel Xeon Scalable processors, supporting a range of CPUs from E5-2600 v4 to E5-2678 v3.
Best Gaming CPU and Motherboard | Support DDR4 REG ECC/DDR4 Desktop Memory: Supports both DDR4 REG ECC and DDR4 desktop memory, boosting system performance, ensuring stability and compatibility.
High-Speed M.2 NVME SSD Support: Dual M.2 NVME slots bring fast data transfer, up to 3200MHz read/write speeds, bringing ultimate gaming and design efficiency.
Multi-Gigabit Connection: Equipped with Realtek Gigabit NIC, this motherboard ensures stable wired network connection via 1 RJ45 port.

Attention:

(1) The color of the groove bottom plate may vary from batch to batch, but it does not affect the use of the product. The product is constantly optimized and upgraded.
(2) Due to manual measurement, there may be an error of 1-3 mm.
(3) Due to differences in monitors and light, the picture may not show the actual color of the product. Thank you for your understanding.
(4) This model requires a strong power supply. Please make sure your power supply is sufficient to support this solution. (At least 500W brand power supply)
(5) The battery in the motherboard picture is not included. According to logistics requirements, the battery is prohibited from use, please remove it before shipment. After receiving the motherboard, you need to install the battery and discharge it. Battery model (CR2032 voltage: 3V).
(6) For customs issues, please make sure you can solve the customs clearance issues by yourself. If you cannot solve it by yourself, we do not recommend that you buy goods in our store. We do not bear the responsibility for customs duties. Thank you for your understanding.
(7). All motherboards can provide BIOS files and drivers, please contact customer service to obtain the files.
